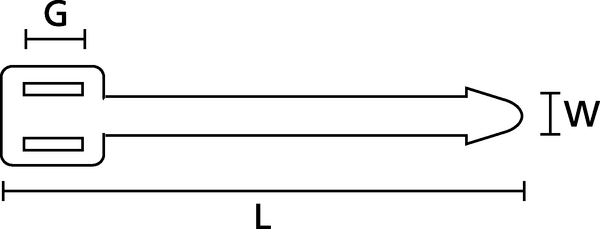

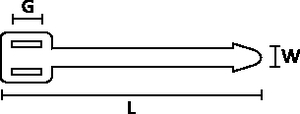

Arrowtag Plate 62.5x4.7 mm black
Číslo dílu 151-41110
| AT1-PA66-BK
|
Podrobnosti na

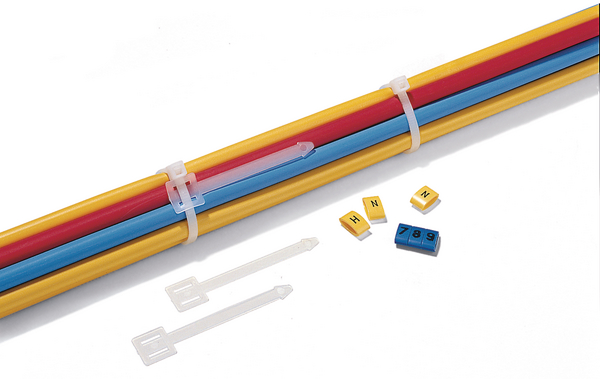

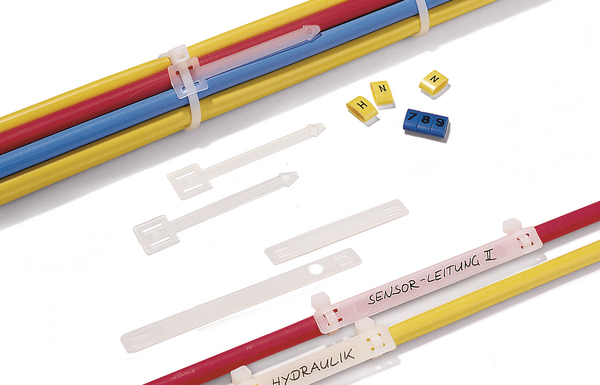

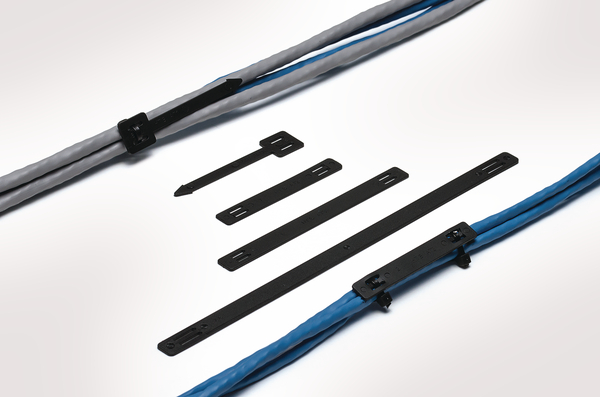

- Blank nylon arrowhead shape plate fixed with a cable tie
- Identify with a T82 pen or Ovalgrip markers
- AT1 for 7 size 50 Ovalgrip markers
- AT2 for 8 size 85 Ovalgrip markers
- AT3 for 14 size 85 Ovalgrip markers
- Custom printed plaques are available on request
Vyžádejte si nyní individuální nabídku
Vyžádat nabídku
Více výrobků v této skupině výrobků:
| Application | The plates are suitable for applying to larger pipes and cables before or after termination has taken place. They can be marked with Ovalgrip markers or manually using the T82 series of indelible markers pens. |
| Colour | Black (BK) |
| Fixation Method | Others |
| Identification Plate Position | attached to bundle |
| Marker tiles per carrier | 7 |
| Material | Polyamide 6.6 (PA66) |
| PART DESCRIPTION | AT1-PA66-BK |
| Pack Cont. | 100pcs. |
| Package Content packed in | pcs. |
| Product Family | Arrowtag |
| Product Group | Identification ties and plates for marking cable bundles |
| Recommended Ovalgrip Size | 50 |
| Short Description | Arrowtag Plate 62.5x4.7 mm black |
| Type | AT1 |
| Variant | Other |
| With label space | Yes |
Stáhnout
| Country of Origin | GB |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 5022660301865 |
| Packaging 1 - Height (m) | 0.015m |
| Packaging 1 - Length (m) | 0.18m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.0004m³ |
| Packaging 1 - Weight (kg) | 0.036201kg |
| Packaging 1 - Width (m) | 0.147m |
| Packaging 3 - Height (m) | 0.192m |
| Packaging 3 - Length (m) | 0.586m |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0439m³ |
| Packaging 3 - Width (m) | 0.39m |
