22/12/2024

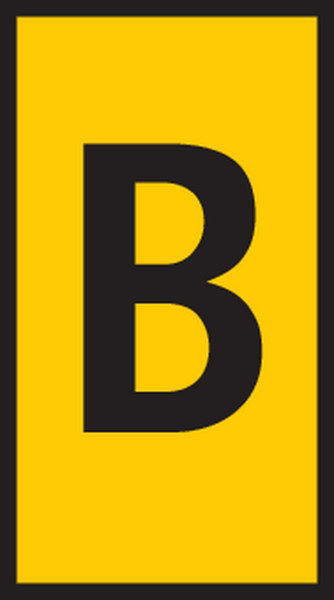

Label, yellow, "B", 38.00x6.40mm, 900pcs.
Číslo dílu 592-12002 | CWML-B-260-YE Podrobnosti na

  • Cotton fabric identification labels
  • Optimum adhesion even on difficult surfaces
  • Also suitable for uneven surfaces
  • Supplied on handy cards
  • Removable adhesive
  • Suitable for permanent and temporary identification
ukázat více

Vyžádejte si nyní individuální nabídku

Application For use as cable markers or cable tags on cables with very small diameter. Ideal for on-site installation.
Cable ∅ min 0.00mm
Chem. Material Properties resistant to oils, water and solvents
Colour Yellow (YE)
Fixation Method Pasting / Stick
Marking Text B
Material Type 260, Cotton cloth, yellow with black print (260)
PART DESCRIPTION CWML-B-260-YE
Pack Cont. 900pcs.
Package Content packed in pack
Short Description Symbols and wire markers 6.4x38 yellow marking text B
Type CWML-B
Variant Card form
With label space Yes
Bundle Diameter max (metric) 9.50mm
Bundle ∅ 2.50-9.50mm
Bundle ∅ min. 2.50mm
Height (H) 38.00mm
Outside ∅ max (OD max.) 9.50mm
Outside ∅ min. (OD min.) 0.00mm
Thickness (T) 150.0µm
Thickness of Foil 150
Weight/Unit 0.000111kg
Width (W) 6.40mm
Adhesive Synthetic rubber
Curing Temperature from +10 °C
ELV compliant (Article 4 - 2) YES
Halogen-free No
Hazardous Goods No
Operating Temperature -29 °C to +80 °C
Pre-Printed Yes
ROHS compliant Yes
Specifications
Country of Origin DE
Customs Number 58071090
GTIN-13 / EAN 4031026172835
Labels per Sheet 36pcs.
Packaging 1 - Height (m) 0.005m
Packaging 1 - Length (m) 0.25m
Packaging 1 - Qty 900
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00019
Packaging 1 - Weight (kg) 0.100001kg
Packaging 1 - Width (m) 0.15m
Sheets per Pack 25pcs.
ETIM 7.0 Key EC001530
ETIM 8.0 Key EC001530
ETIM 9.0 Key EC001530
