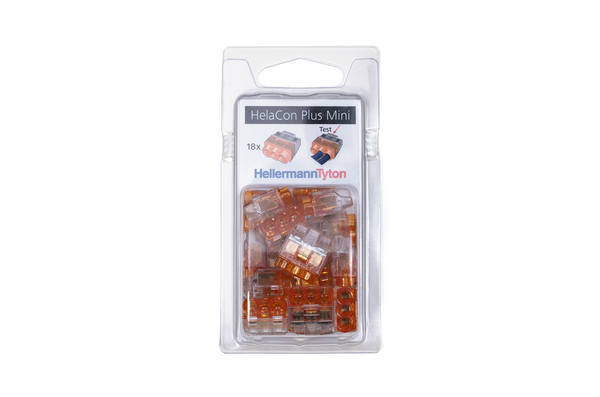

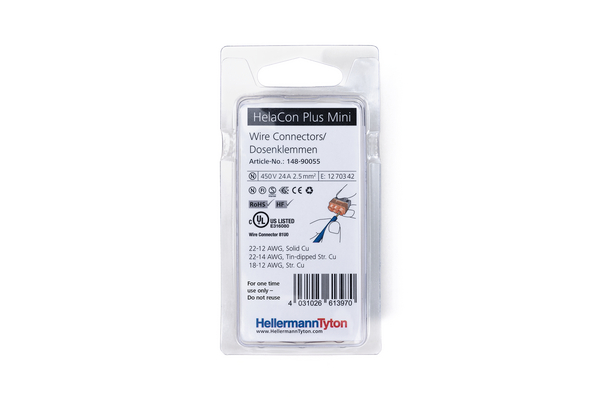

Push-in wire connector, 3 conductors, 0.5 to 2.5 mm² solid wires / 1.0 to 2.5 mm² stranded wires, transparent/orange, 18pcs.
Číslo dílu 148-90055
| HCPM-3-Blister-PC-CL/OG
|
Podrobnosti na
- 40 % smaller – Space saving design
- Low insertion force – Easy to use, saves time on installation
- Easy access to voltage test entry and innovative port shape design
- Correct installation can be visually checked through transparent housing
- Different colour codes for easy identification of size
- Allows different conductor diameters in each entry
- Safe application, installation and maintenance
Vyžádejte si nyní individuální nabídku
Vyžádat nabídku
Více výrobků v této skupině výrobků:
| Application | HelaCon connectors are used for fast, easy and reliable connection and distribution of cable and conductors in electrical installation applications. The new generation of HelaCon Plus Mini wire connectors can be applied tool-free using the push-in technology. HelaCon Plus Mini uses a double spring which is approved for solid and stranded wires. |
| Colour | Transparent (CL), Orange (OG) |
| Material | Polycarbonate (PC) |
| Number of Conductors | 3 |
| PART DESCRIPTION | HCPM-3-Blister-PC-CL/OG |
| Pack Cont. | 18pcs. |
| Package Content packed in | box |
| Product Family | HelaCon Plus Mini |
| Product Group | Connectors - For Solid and Stranded Wires |
| Short Description | HelaCon Plus Mini wire connector for solid and stranded wires. |
| Suitable for flexible core (Yes/No) | No |
| Suitable for multi wire core (Yes/No) | Yes |
| Suitable for solid core (Yes/No) | Yes |
| Type | HCPM-3-Blister |
Stáhnout
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V0 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -30 °C to +85 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | 2006/65/EC, ANSI/UL 486-A, ANSI/UL 486-B, ANSI/UL 486-C, DIN EN 60998-2-2:2005-03, EN 60998-2-2:2004, ENEC, NF EN 60695-2-10 (2013), NF EN 60695-2-11 (2014) |
| UL OCD link | Odkaz |
| UL-File Number | E316080 |
|
|
|
| Country of Origin | CN |
| Customs Number | 85369010 |
| GTIN-13 / EAN | 4031026613970 |
| Packaging 1 - Height (m) | 0.035m |
| Packaging 1 - Length (m) | 0.11m |
| Packaging 1 - Qty | 18 |
| Packaging 1 - Type | pack |
| Packaging 1 - Volume (m³) | 0.00021m³ |
| Packaging 1 - Weight (kg) | 0.0342kg |
| Packaging 1 - Width (m) | 0.055m |
| Packaging 3 - Height (m) | 0.32m |
| Packaging 3 - Length (m) | 0.37m |
| Packaging 3 - Qty | 3240 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.029m³ |
| Packaging 3 - Weight (kg) | 6.656kg |
| Packaging 3 - Width (m) | 0.245m |
| Packaging 4 - Height (m) | 1.104m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 87480 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.06m³ |
| Packaging 4 - Weight (kg) | 200.712kg |
| Packaging 4 - Width (m) | 0.8m |
