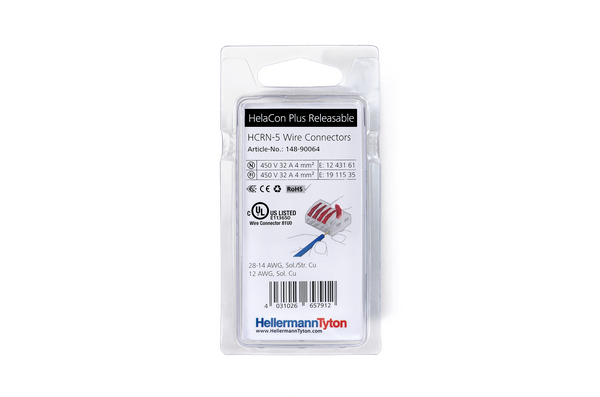

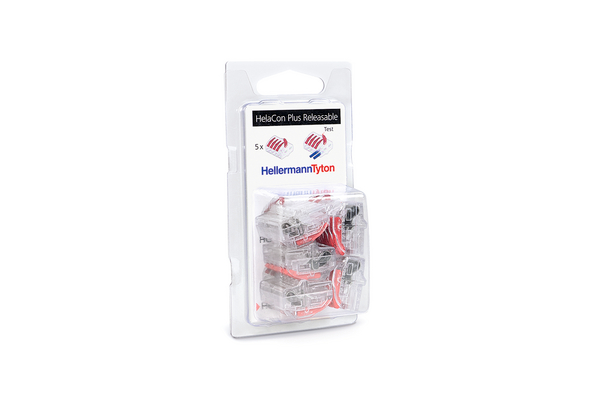

Push-in wire connector, 5 conductors, 0.2 to 4.0 mm² all types of wire, transparent, 5pcs.
Číslo dílu 148-90064
| HCRN-5-Blister-PC-CL
|
Podrobnosti na
- Universal push-in wire connector for solid, stranded and fine-stranded wires
- Compact size connector
- Wire clamping range: 0.2 - 4.0 mm²
- Separate voltage test entry on the top
- For proper fixing that can be visually checked through transparent housing
- Safe application, installation and maintenance
Vyžádejte si nyní individuální nabídku
Vyžádat nabídku
Více výrobků v této skupině výrobků:
| Application | The HelaCon Plus Releasable connectors are used for all types of wire to connect cable and conductors in the field of electrical installation. The connectors can be used in all kinds of junction boxes either on-wall or flush-mounted. HelaCon offers the best possible solution when convenient processing and maximum safety is required. |
| Colour | Transparent (CL) |
| Material | Polycarbonate (PC) |
| Number of Conductors | 5 |
| PART DESCRIPTION | HCRN-5-Blister-PC-CL |
| Pack Cont. | 5pcs. |
| Package Content packed in | box |
| Product Family | HelaCon Plus Releasable |
| Product Group | Connectors - For all Types of Wire |
| Short Description | HelaCon Plus Releasable wire connector for all types of wire. |
| Suitable for flexible core (Yes/No) | Yes |
| Suitable for multi wire core (Yes/No) | Yes |
| Suitable for solid core (Yes/No) | Yes |
| Type | HCRN-5-Blister |
Stáhnout
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V0 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -30 °C to +85 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | UL 486C |
| UL Listed (US and Canada) | Yes |
| UL OCD link | Odkaz |
| UL-File Number | E316080 |
| Country of Origin | CN |
| Customs Number | 85369010 |
| GTIN-13 / EAN | 4031026657912 |
| Packaging 1 - Height (m) | 0.035m |
| Packaging 1 - Length (m) | 0.105m |
| Packaging 1 - Qty | 5 |
| Packaging 1 - Type | pack |
| Packaging 1 - Volume (m³) | 0.0002m³ |
| Packaging 1 - Weight (kg) | 0.041kg |
| Packaging 1 - Width (m) | 0.055m |
| Packaging 3 - Height (m) | 0.32m |
| Packaging 3 - Length (m) | 0.415m |
| Packaging 3 - Qty | 900 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.0325m³ |
| Packaging 3 - Weight (kg) | 7.88kg |
| Packaging 3 - Width (m) | 0.245m |
| Packaging 4 - Height (m) | 0.96m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 16200 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 0.922m³ |
| Packaging 4 - Weight (kg) | 162.84kg |
| Packaging 4 - Width (m) | 0.8m |
