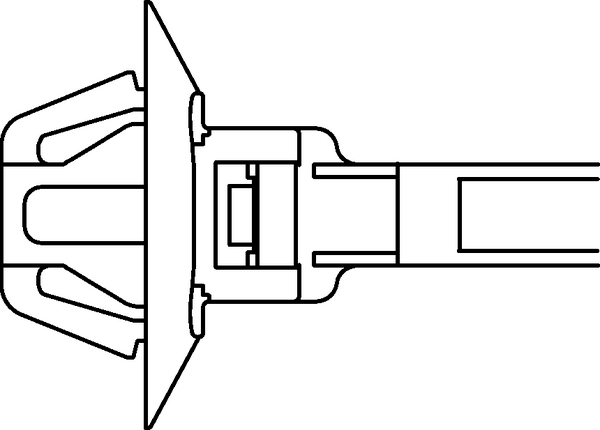

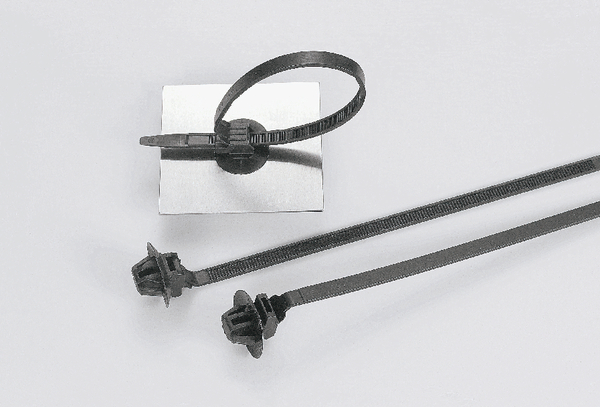

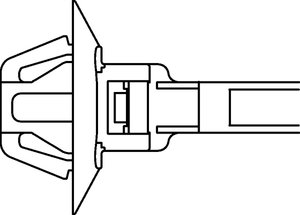

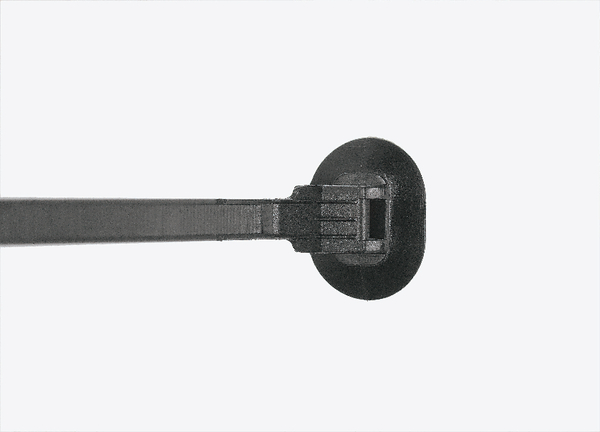

Fixing tie for hole (oval), outside serrated, ∅1.0-30mm, black, 100pcs.
Cikkszám 126-00131
| OS170-PM712-PA66HSUV-BK
|
Részletek
- Easy to install without the need for a tool
- Arrowhead simply locks into place
- Disc adjusts tie for pressures from various directions and minimises access of dust and dirt
- Cable tie head always situated in a defined position
- Versions for oval holes feature anti-twist protection
Kérje egyedi ajánlatát most
Ajánlatkérés
More products in this product group:
| Application | With a diverse range of fixing possibilities are ideal for use in many different industries, including automotive, aerospace and panel building. |
| Colour | Black (BK) |
| Fixation Method | Arrowhead for oval holes |
| Identification Plate Position | none |
| Material | Polyamide 6.6, heat and UV-stabilised (PA66HSUV) |
| PART DESCRIPTION | OS170-PM712-PA66HSUV-BK |
| Pack Cont. | 100pcs. |
| Package Content packed in | bag |
| Product Family | for oval holes |
| Product Group | 1-piece fixing ties with arrowhead, with disc |
| Releasable Closure (Yes/No) | No |
| Tie Closure | plastic pawl |
| Type | OS170-PM712 |
| Bundle Diameter max (metric) | 30mm |
| Bundle ∅ | 1.0-30mm |
| Bundle ∅ min. | 1.0mm |
| Disc ∅ | 16,0 x 21,0mm |
| Fixing Hole Shape | Oval |
| Height (H) | 12mm |
| Length (L) | 170mm |
| Min.Tensile Strength | 150N |
| Thickness (T) | 1.5mm |
| Weight/Unit | 0.00162kg |
| Width (W) | 5.0mm |
| for Hole ∅ (FH) | 7.0 x 12.0 mm |
| for Panel Thickness min - max | 0.6 - 1.6 mm |
Letöltés
|
|
|
| Country of Origin | JP |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4944387960310 |
| Packaging 1 - Height (m) | 0.035m |
| Packaging 1 - Length (m) | 0.33m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00254m³ |
| Packaging 1 - Weight (kg) | 0.162001kg |
| Packaging 1 - Width (m) | 0.22m |

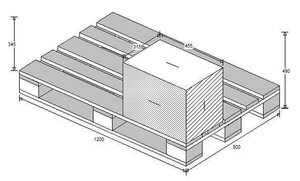

| Packaging 3 - Height (m) | 0.345m |
| Packaging 3 - Length (m) | 0.455m |
| Packaging 3 - Qty | 2500 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0494m³ |
| Packaging 3 - Weight (kg) | 4.490025kg |
| Packaging 3 - Width (m) | 0.315m |

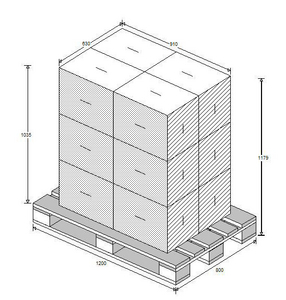

| Packaging 4 - Height (m) | 1.179m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 37500 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.132m³ |
| Packaging 4 - Weight (kg) | 88.35kg |
| Packaging 4 - Width (m) | 0.8m |
