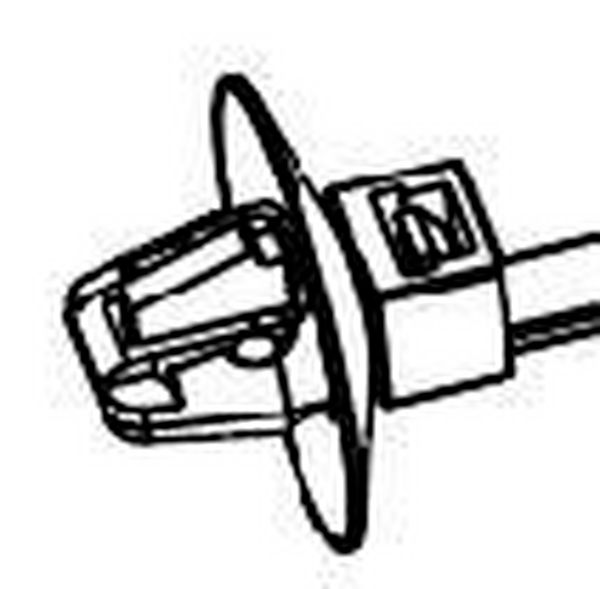

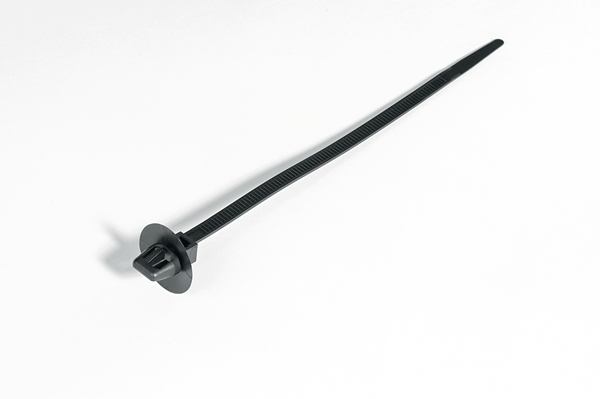

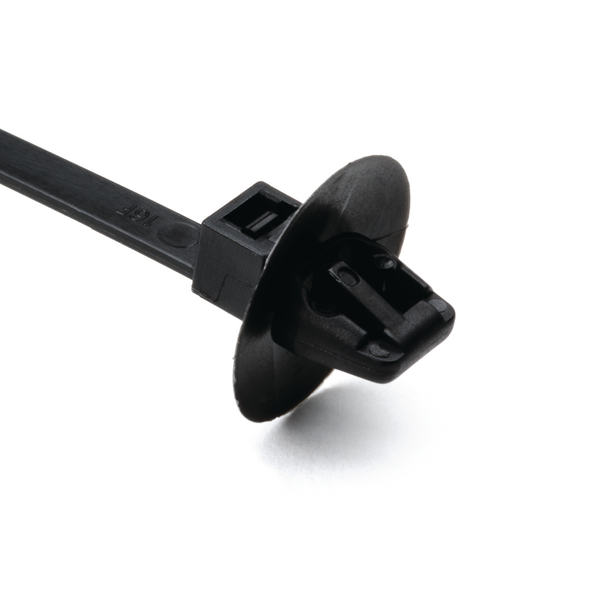

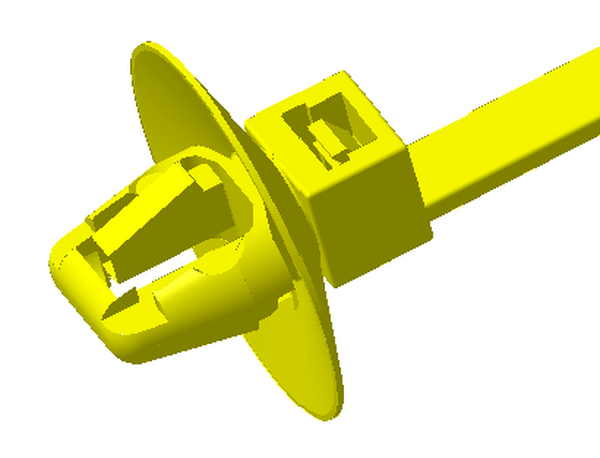

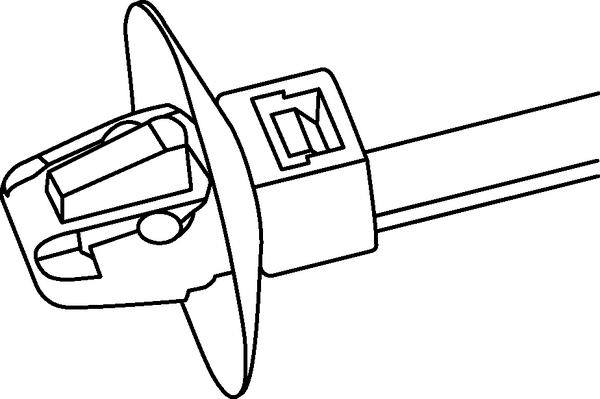

Fixing tie for hole (oval), inside serrated, ∅5.0-30.0mm, black, 500pcs.
Cikkszám 126-00015
| T50SDOP-PA66HS-BK
|
Részletek
- Easy to install without the need for a tool
- Arrowhead simply locks into place
- Disc adjusts tie for pressures from various directions and minimises access of dust and dirt
- Cable tie head always situated in a defined position
- Versions for oval holes feature anti-twist protection
Kérje egyedi ajánlatát most
Ajánlatkérés
More products in this product group:
| Application | With a diverse range of fixing possibilities are ideal for use in many different industries, including automotive, aerospace and panel building. |
| Anti rotation (Yes / No) | YES |
| Colour | Black (BK) |
| Fixation Method | Arrowhead for oval holes |
| Identification Plate Position | none |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| PART DESCRIPTION | T50SDOP-PA66HS-BK |
| Pack Cont. | 500pcs. |
| Package Content packed in | bag |
| Product Family | for oval holes |
| Product Group | 1-Piece Fixing Ties with Arrowhead, with Disc for oval holes |
| Releasable Closure (Yes/No) | No |
| Short Description | 1-Piece Fixing Tie with Arrowhead and Disc for oval holes PA66HS 160x5 mm black |
| Tie Closure | plastic pawl |
| Type | T50SDOP |
| Variant | Inside Serrated |
|
|
| Bundle Diameter max (metric) | 30.0mm |
| Bundle ∅ | 5.0-30.0mm |
| Bundle ∅ min. | 5.0mm |
| Disc ∅ | 22.0mm |
| Fixing Hole Shape | Oval |
| Length (L) | 160.0mm |
| Min Stud Length | 9.2mm |
| Min.Tensile Strength | 225N |
| Panel Thickness max. | 1.0 - 1.9mm |
| Thickness (T) | 1.3mm |
| Weight/Unit | 0.001749kg |
| Width (W) | 5.0mm |
| for Hole ∅ (FH) | 6.2 x 12.2 mm |
| for Panel Thickness min - max | 1 - 1.9 mm |
| for Panel Thickness min - max | 0 - 0.1 " |
Letöltés
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | No |
|
|
|
| Country of Origin | GB |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 5022660326400 |
| Packaging 1 - Height (m) | 0.155m |
| Packaging 1 - Length (m) | 0.31m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.01369m³ |
| Packaging 1 - Weight (kg) | 0.874501kg |
| Packaging 1 - Width (m) | 0.285m |
| Packaging 3 - Height (m) | 0.364m |
| Packaging 3 - Length (m) | 0.563m |
| Packaging 3 - Qty | 4000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0777m³ |
| Packaging 3 - Weight (kg) | 7.957008kg |
| Packaging 3 - Width (m) | 0.379m |
| Packaging 4 - Height (m) | 1.236m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 48000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.187m³ |
| Packaging 4 - Weight (kg) | 116.484kg |
| Packaging 4 - Width (m) | 0.8m |
