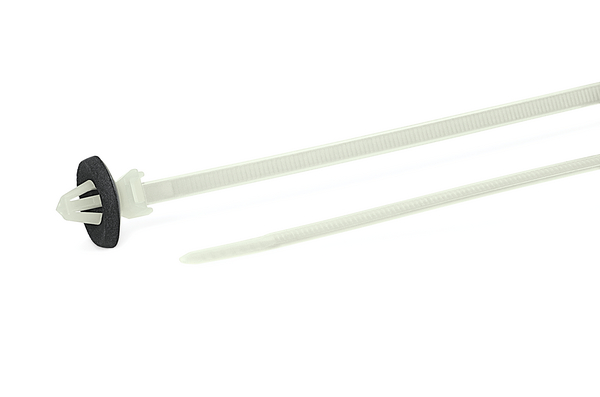

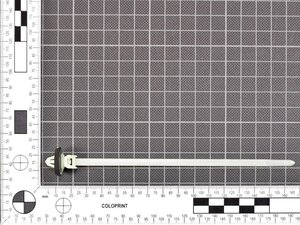

Fixing tie for hole (round)/for hole (hex), outside serrated, ∅1.5-35.0mm, natural, 500pcs.
Cikkszám 126-00065
| T50SOSSFT6.5E-MS-MD-PA66HS-NA
|
Részletek

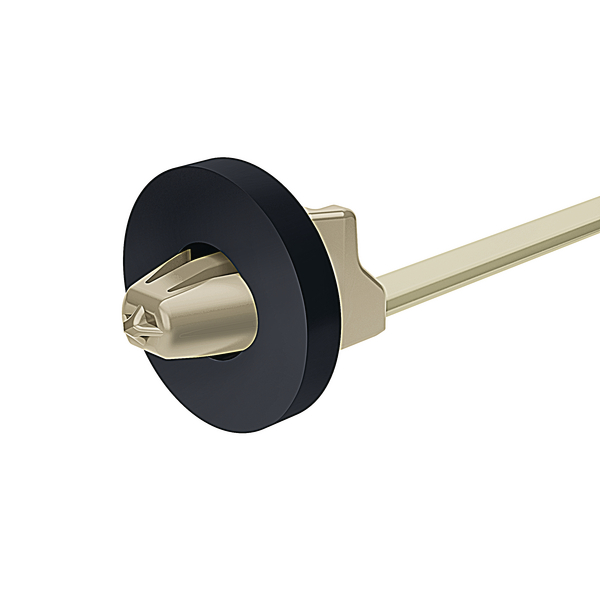

- One-piece fixing ties with cellular rubber disc
- Especially suitable for door and tailgate harnesses used for car body applications
- Made from PA66 heat-stabilised material
- Cellular rubber disc minimises ingress of dust, dirt and splash water
Kérje egyedi ajánlatát most
Ajánlatkérés
More products in this product group:
| Application | The parts are mainly used in the automotive industry. This fastening solution is used to secure cable harnesses e.g. in car doors . We offer a variety of panel thicknesses and hole sizes to suit all kinds of application. The seal protects the interior and surrounding cables among other things from splash water. |
| Colour | Natural (NA) |
| Fixation Method | arrowhead |
| Identification Plate Position | none |
| Key product features | products for automatic tools |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| PART DESCRIPTION | T50SOSSFT6.5E-MS-MD-PA66HS-NA |

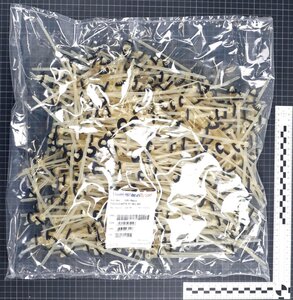

| Pack Cont. | 500pcs. |
| Package Content packed in | bag |
| Product Family | for round holes, sealed |
| Product Group | 1-piece fixing ties with arrowhead, with disc |
| Releasable Closure (Yes/No) | No |
| Short Description | Fixing tie 163x4,6 mm, arrowhead, heat stabilised, natural |
| Tie Closure | plastic pawl |
| Type | T50SOSSFT6.5E-MS-MD |
| Variant | Outside Serrated |
|
|
| Bundle Diameter max (metric) | 35.0mm |
| Bundle ∅ | 1.5-35.0mm |
| Bundle ∅ min. | 1.5mm |
| Disc ∅ | 16.0mm |
| Length (L) | 163.0mm |
| Min.Tensile Strength | 180N |
| Panel Thickness max. | 0.7 - 1.6mm |
| Thickness (T) | 1.3mm |
| Weight/Unit | 0.001627kg |
| Width (W) | 4.6mm |
| for Hole ∅ (FH) | 6.1 - 6.6 mm (hexagonal), 6.25 - 6.75 mm |
| for Panel Thickness min - max | 0.7 - 1.6 mm |
| for Panel Thickness min - max | 0 - 0.1 " |
Letöltés
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | No |
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026279046 |
| Packaging 1 - Height (m) | 0.09m |
| Packaging 1 - Length (m) | 0.46m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.01842m³ |
| Packaging 1 - Weight (kg) | 0.8495kg |
| Packaging 1 - Width (m) | 0.445m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 3000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 5.917kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 36000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 92.004kg |
| Packaging 4 - Width (m) | 0.8m |
