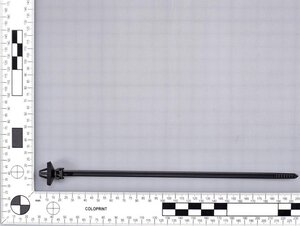

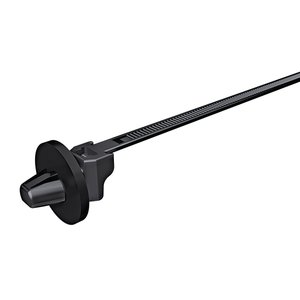

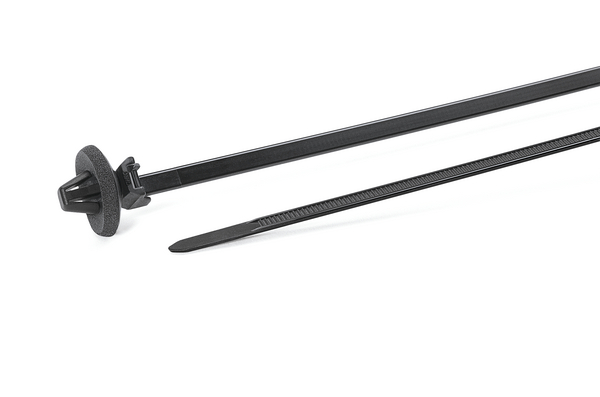

Fixing tie for hole (round), outside serrated, ∅4.0-45.0mm, black, 500pcs.
Cikkszám 156-00379
| T50XROSSFT6.5-E-MDL-PA66HS-BK
|
Részletek
- One-piece fixing ties with cellular rubber disc
- Especially suitable for door and tailgate harnesses used for car body applications
- Made from PA66 heat-stabilised material
- Cellular rubber disc minimises access of dust, dirt and water
Kérje egyedi ajánlatát most
Ajánlatkérés
More products in this product group:
| Application | The parts are mainly used in the automotive industry. This fastening solution is used to secure cable harnesses e.g. in car doors . We offer a variety of panel thicknesses and hole sizes to suit all kinds of application. The seal protects the interior and surrounding cables among other things from splash water. |
| Colour | Black (BK) |
| Fixation Method | arrowhead |
| Identification Plate Position | none |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| PART DESCRIPTION | T50XROSSFT6.5-E-MDL-PA66HS-BK |

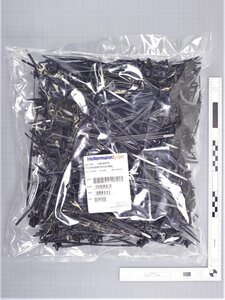

| Pack Cont. | 500pcs. |
| Package Content packed in | bag |
| Product Family | for round holes, sealed |
| Product Group | 1-Piece Fixing Ties with Arrowhead, with Disc, sealed |
| Releasable Closure (Yes/No) | No |
| Short Description | 1-Piece fixing tie 200x4.6 mm, with arrowhead, heat stabilised, black |
| Tie Closure | plastic pawl |
| Type | T50XROSSFT6.5-E-MDL |
| Variant | Outside Serrated |
|
|
| Bundle Diameter max (metric) | 45.0mm |
| Bundle ∅ | 4.0-45.0mm |
| Bundle ∅ min. | 4.0mm |
| Disc ∅ | 16.0mm |
| Length (L) | 200.0mm |
| Min.Tensile Strength | 200N |
| Thickness (T) | 1.3mm |
| Weight/Unit | 0.001893kg |
| Width (W) | 4.6mm |
| for Hole ∅ (FH) | 6.1 - 6.6 mm (hexagonal), 6.25 - 6.75 mm |
| for Panel Thickness min - max | 1.2 - 2.1 mm |
| for Panel Thickness min - max | 0.1 - 0.1 " |
Letöltés
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026289632 |
| Packaging 1 - Height (m) | 0.08m |
| Packaging 1 - Length (m) | 0.37m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00918m³ |
| Packaging 1 - Weight (kg) | 0.975635kg |
| Packaging 1 - Width (m) | 0.31m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 4000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 8.62508kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 48000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 124.488kg |
| Packaging 4 - Width (m) | 0.8m |
