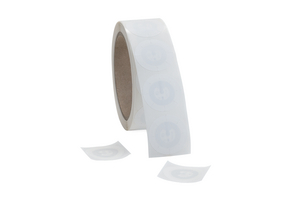

RFID label, 13.56 MHz (HF), yellow, ∅31.00mm, 2500pcs.
Cikkszám 556-00822 | TAGD31T1HFTM-1601-YE | Részletek

RFID adhesive label – tamper-proof unique identification.

Adhesive label with integrated RFID transponder according to international standards
Integrated insulating layer to ensure the RFID function on metallic surfaces
Tamper protection through predetermined breaking points - non-destructive removal is not possible
Rewritable memory
Resilient material provided with a permanent adhesive for permanent adhesion
Can be printed with the help of thermal transfer printers
Clear identification of objects and / or locations through unique numbering systems
Faster, more secure and fail-safe data management
Robust and durable

mutasson többet

Felvétel a figyelőlistára

Kérje egyedi ajánlatát most

Ajánlatkérés

Keressen egy forgalmazót az Ön közelében

Downloads

More products in this product group:

Adhesive labels with integrated RFID transponder, thermal transfer >

Base Data

Application	This adhesive label with integrated RFID transponder is ideal for clear identification and digital management of mobile and fixed equipment, raw materials and semi-finished or finished products. Thanks to the so-called UID (Unique Identifier, Unique Identification Number) and its integrated and freely usable data memory, objects can be easily inventorised and tracked within the framework of asset management (resource management) or the manufacturing execution system (production control system) (tracking , traceability) as well as monitored and managed. With the help of an IT infrastructure, specific information can be assigned to each individual object or location, which can be called up as required and thus serve to optimise processes. This has an immediate positive effect on process costs.
Application Method	The functionality and durability of the labels can be negatively affected if improperly processed or applied. All surfaces to be bonded must be clean, dry as well as free from dust and grease. Avoid touching the adhesive surface of the label as this could impair the application performance.
Colour	Yellow (YE)
Description	High Frequency (HF)
Fixation Method	adhesive
Key product features	detectable
Material	Type 1601, Polyester (1601)
PART DESCRIPTION	TAGD31T1HFTM-1601-YE
Pack Cont.	2500pcs.
Package Content packed in	reel
Product Family	RFID label type 1601 – High frequency (HF), tamper-proof and on-metal
Product Group	Adhesive labels with integrated RFID transponder, thermal transfer
Removable	No
Self adhesive (Yes/No)	Yes
Short Description	Adhesive label with integrated RFID transponder
Type	TAGD31T1HFTM

Product Dimensions


Diameter (D)	31.00mm
Frequency	13.56 MHz (HF)
Print Method	thermal transfer print
Thickness (T)	0.322mm
Weight/Unit	0.0003kg

Downloads

Specifications

Curing Temperature	from +15 °C
Data Retention	50 years
ELV compliant (Article 4 - 2)	YES
Hazardous Goods	No
IP-Rating	Other
Operating Temperature	-40 °C to +85 °C
ROHS compliant	Yes
Radio protocol	ISO/IEC 15693
Recommended Ribbon Type	TT822OUT
Shelf Life	12 months
Specifications
Tamper proof	Yes
Type of RFID chip	NXP ICode SLIX2
Write endurance	100000 cycles

Logistics and Packaging

Country of Origin	DE
Customs Number	85235910
GTIN-13 / EAN	4031026659213
Labels per Row	1pc.
Packaging 1 - Height (m)	0.036m
Packaging 1 - Length (m)	0.2m
Packaging 1 - Qty	2500
Packaging 1 - Type	reel
Packaging 1 - Volume (m³)	0.00144m³
Packaging 1 - Weight (kg)	0.75kg
Packaging 1 - Width (m)	0.2m
Storage Temperature	+20 °C
Storage conditions	50% relative humidity.
