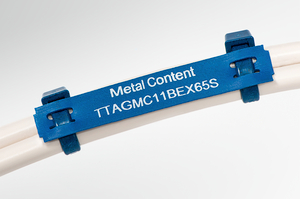

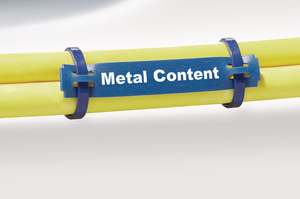

Metal content cable marker 15x65 mm blue
Cikkszám 556-26502 | TTAGMC15BEX65S-PO/MET-BU |  Részletek

Metal content identification tags TIPTAG MC for a safe and clean production process.

    • Metal detectable
    • For marking larger cables in food and pharma industries
    • Outstanding chemical resistance
    • High temperature resistant
    • Non-burning
    mutasson többet
    Felvétel a figyelőlistára

    Kérje egyedi ajánlatát most

     Ajánlatkérés
    Downloads
    e-Learning
    Application The TIPTAG MC cable markers have been especially designed for applications where materials need to be metal detectable. Small metal particles have been included into the entire length of the marker making it ideal for marking larger cables, wires and bundles in the food and pharmaceutical industries. TIPTAG MCs come in a special perforated format that includes holes for fastening with cables ties (MCT). Print from the reel with HellermannTyton's premium range of thermal transfer printers.
    Colour Blue (BU)
    Fixation Method Others
    Material Polyolefin (PO), Metal (MET)
    PART DESCRIPTION TTAGMC15BEX65S-PO/MET-BU
    Pack Cont. 190pcs.
    Package Content packed in reel
    Product Family TIPTAG MC - Metal Content Tiptags
    Product Group Identification tags for cable bundles, thermal transfer
    Short Description Metal content cable marker 15x65 mm blue
    Type TTAGMC15BEX65S
    Variant Roller form
    With label space Yes
    H printable 9.52mm
    Length (L) 65.0mm
    Print Method thermal transfer print
    Strap Width max. (G) 4.6mm
    Weight/Unit 0.000001kg
    Width (W) 15.0mm
    Width printable 38.1mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Recommended Ribbon Type TTDTHOUT, TTRW
    Reel Variant continuous
    Specifications
    UV-Stabilised No
    Country of Origin GB
    Customs Number 39209990
    GTIN-13 / EAN 5022660696275
    Packaging 1 - Height (m) 0.021m
    Packaging 1 - Length (m) 0.16m
    Packaging 1 - Qty 190
    Packaging 1 - Type reel
    Packaging 1 - Volume (m³) 0.00054m³
    Packaging 1 - Weight (kg) 0.07919kg
    Packaging 1 - Width (m) 0.16m
    Packaging 2 - Height (m) 0.168m
    Packaging 2 - Length (m) 0.168m
    Packaging 2 - Qty 760
    Packaging 2 - Type carton
    Packaging 2 - Volume (m³) 0.0031m³
    Packaging 2 - Weight (kg) 0.41976kg
    Packaging 2 - Width (m) 0.11m
    ETIM 7.0 Key EC001530
    ETIM 8.0 Key EC001530
    ETIM 9.0 Key EC001530
    UNSPSC Key 39131504
