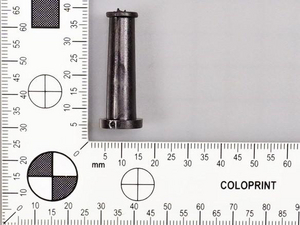

Cable grommet, ∅9.0 mm, black, 1000pcs.
Art.-No. 632-01020 | HV2101A-PVC-FR-BK |  세부

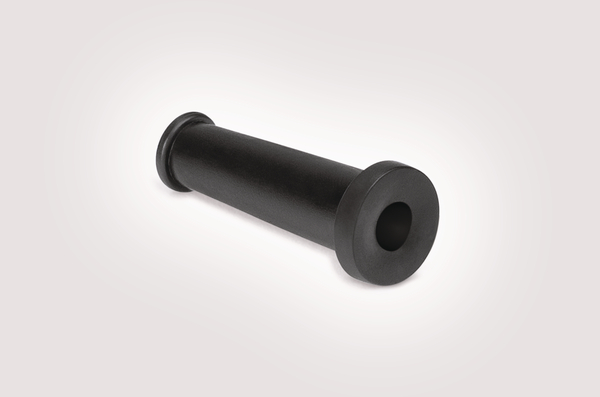

Bend Protection Grommet - HV2101A.

    • Routes cables free of kinks and breakage
    • Provides strain relief
    • Flexible and easy to apply
    • High resistance to chemicals und environmental influences
    Downloads
    Application Bend protection grommets are typically used to protect cables and wires at the apertures in casings.
    Cable ∅ max 5.5mm
    Cable ∅ min 5.3mm
    Colour Black (BK)
    Material Polyvinylchloride, flame retardant (PVC-FR)
    PART DESCRIPTION HV2101A-PVC-FR-BK

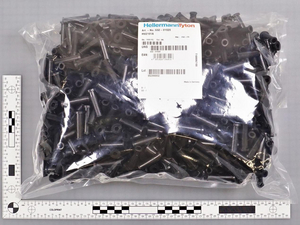

    Pack Content 1000pcs.
    Package Content packed in pcs.
    Product Family Bend protection grommets
    Product Group For bend protection at cable exits
    Type HV2101A
    Variant Open

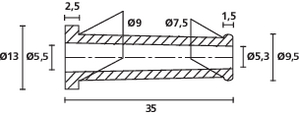

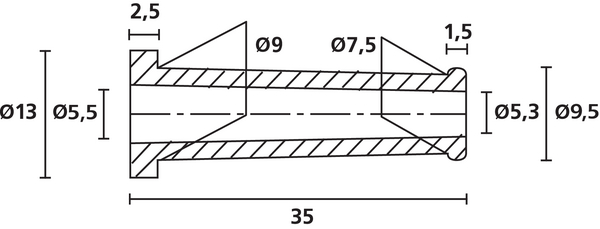

    Diameter (D) 5.5mm
    Length (L) 35.0mm
    Outside Ø (OD) 13.0mm
    Outside ∅ (OD2) 9.5mm
    Shore Hardness A 55±5
    for Hole ∅ (FH) 9.0 mm
    ∅ (D2) 5.3mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V0
    Hazardous Goods No
    Operating Temperature -30 °C to +60 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026186016
    Packaging 1 - Height (m) 0.11m
    Packaging 1 - Length (m) 0.205m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00677m³
    Packaging 1 - Weight (kg) 1.551kg
    Packaging 1 - Width (m) 0.3m
