Cable grommet, ∅6.0 mm, black, 2000pcs.
Art.-No. 632-02130 | HV2213-PVC-FR-BK |  세부

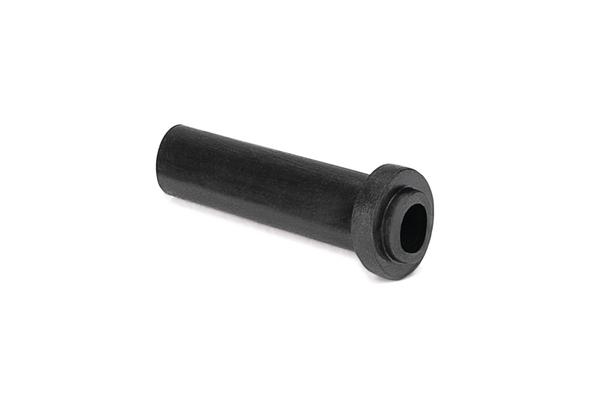

Bend Protection Grommet - HV2213.

    • Routes cables free of kinks and breakage
    • Provides strain relief
    • Flexible and easy to apply
    • High resistance to chemicals und environmental influences
    Downloads
    Application Bend protection grommets are typically used to protect cables and wires at the apertures in casings.
    Cable ∅ max 4.0mm
    Cable ∅ min 3.5mm
    Colour Black (BK)
    Material Polyvinylchloride, flame retardant (PVC-FR)
    PART DESCRIPTION HV2213-PVC-FR-BK
    Pack Content 2000pcs.
    Package Content packed in pcs.
    Product Family Bend protection grommets
    Product Group Bend protection grommets
    Type HV2213
    Variant Open

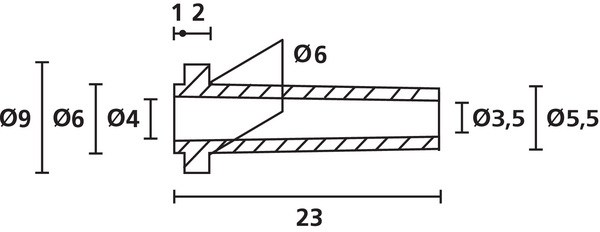

    Diameter (D) 4.0mm
    Length (L) 23.0mm
    Outside Ø (OD) 9.0mm
    Outside ∅ (OD2) 5.5mm
    Shore Hardness A 55±5
    for Hole ∅ (FH) 6.0 mm
    ∅ (D2) 3.5mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V0
    Hazardous Goods No
    Operating Temperature -30 °C to +60 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026186153
    Packaging 1 - Height (m) 0.15m
    Packaging 1 - Length (m) 0.3m

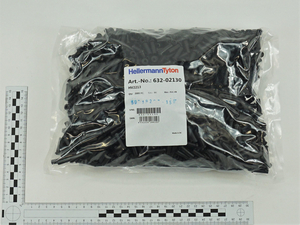

    Packaging 1 - Qty 2000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01845m³
    Packaging 1 - Weight (kg) 1.021815kg
    Packaging 1 - Width (m) 0.41m
