Cable grommet, ∅9.0 mm, black, 1000pcs.
Art.-No. 632-01030 | HV2103-PVC-FR-BK |  세부

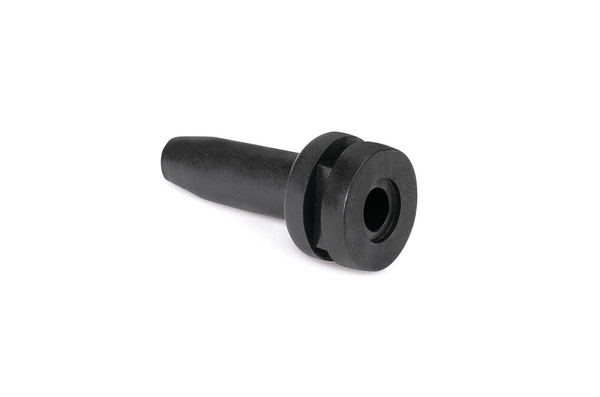

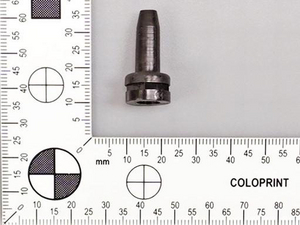

Bend Protection Grommet - HV2103.

    • Routes cables free of kinks and breakage
    • Provides strain relief
    • Flexible and easy to apply
    • High resistance to chemicals und environmental influences
    Downloads
    Application Bend protection grommets are typically used to protect cables and wires at the apertures in casings.
    Cable ∅ max 5.5mm
    Cable ∅ min 4.5mm
    Colour Black (BK)
    Material Polyvinylchloride, flame retardant (PVC-FR)
    PART DESCRIPTION HV2103-PVC-FR-BK

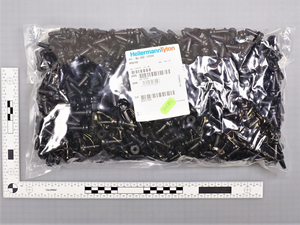

    Pack Content 1000pcs.
    Package Content packed in pcs.
    Product Family Bend protection grommets
    Product Group For strain relief
    Type HV2103
    Variant Open

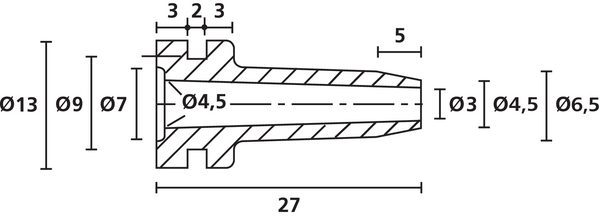

    Diameter (D) 4.5mm
    Length (L) 27mm
    Outside Ø (OD) 13.0mm
    Outside ∅ (OD2) 6.5mm
    Shore Hardness A 55±5
    for Hole ∅ (FH) 9.0 mm
    ∅ (D2) 3.0mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V0
    Hazardous Goods No
    Nato number 5975-12-170-3471
    Operating Temperature -30 °C to +60 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 4031026186047
    Packaging 1 - Height (m) 0.08m
    Packaging 1 - Length (m) 0.16m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00461m³
    Packaging 1 - Weight (kg) 1.505kg
    Packaging 1 - Width (m) 0.36m
