Single Rack Snaps
Art.-No. 854-40080 | RS103 |  Details

Single Rack Snaps

    Add to watchlist
    Colour Black (BK)

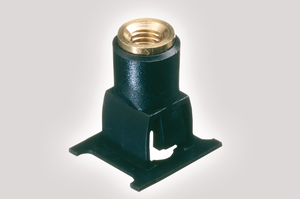

    Description The Single Rack Snap is supplied as individual blocks and are fitted with a quality brass M5 sized gromet. The easy installation of the Rack Snaps enables the installer to quickly position and secure patch panels or active equipment in the rack or cabinet.
    PART DESCRIPTION RS103
    Panel Fixing Method rack snap
    Product Family Single Rack Snaps
    Product Group Cable Management Accessories
    Short Description Single Rack Snaps
    Technical Description The Single Rack Snap is available individually, in packs of 50 or 100 and require M5 screws. Patch panel installation with the Rack Snap is significantly faster than using cage nuts. NB: The single rack snaps are not supplied with M5 screws.
    Type RS103
    Depth (D) 19mm
    Height (H) 16mm
    Width (W) 14mm
    Country of Origin GB
    Dimensions W x H x D 14 mm x 16 mm x 19 mm
    GTIN-13 / EAN 5022660865183
    ETIM 7.0 Key EC000000
    ETIM 8.0 Key EC000000
    ETIM 9.0 Key EC000000
