21/11/2024

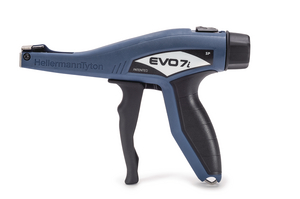

Cable tie tool for 2.5 - 4.8mm, manual, 0.279kg, blue
Art.-No. 110-77002 | EVO7iSP-MET/PL-BU |  Details

    • Ergonomic, slip-proof handle for a comfortable and secure grip
    • Extremely low-maintenance
    • Fast and precise application with minimum effort (TLC mechanism)
    • Convenient and simple tension adjustment
    • Extended, slim nose for use in narrow spaces
    • Housing made of resilient and lightweight glass fibre-reinforced polyester
    • Standard grip span (90 mm) and short grip span (80 mm) polyester
    Show more
    Add to watchlist
    Downloads
    Application HellermannTyton's EVO 7i industrial-grade, mechanical hand tool is ergonomically designed to reduce the risks of repetitive stress injuries to operators while simultaneously increasing productivity. The EVO 7i’s Tension/Lock/Cut technology delivers performance, safety and comfort for operators. Calibrated tensioning assures consistent wire bundle tension before flush cut-off. Available in a standard grip span (EVO 7i) or short grip span (EVO 7iSP) for smaller hands. Additional accessories are available.
    Colour Blue (BU)
    Description EVO7iSP
    For Cable Tie Width 0.10 - 0.19"
    For Cable Tie Width 2.5 - 4.8mm
    For Ties T18, T30, T40, T50, T80, IT18, IT50
    Material Metal (MET), Plastic (PL)
    Operation manual
    PART DESCRIPTION EVO7iSP-MET/PL-BU
    Pack Cont. 1pc.
    Package Content packed in box
    Product Family EVO7iSP up to 4.8 mm strap width
    Product Group Manual tensioning tool plastic housing
    Strap Thickness max. 1.5mm
    Tool property Manual clipping
    Tool suitable cable tie material Plastic
    Type EVO7iSP
    Length (L) 192mm
    Strap Width max. 4.8mm
    Tension Setting Adjustable
    Weight/Unit 0.279kg
    Width (W) 33mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    Country of Origin CN
    Customs Number 82055980
    GTIN-13 / EAN 4031026621784
    Packaging 1 - Height (m) 0.055m
    Packaging 1 - Length (m) 0.235m
    Packaging 1 - Qty 1
    Packaging 1 - Type carton
    Packaging 1 - Volume (m³) 0.00239m³
    Packaging 1 - Weight (kg) 0.779kg
    Packaging 1 - Width (m) 0.185m
    ETIM 7.0 Key EC000453
    ETIM 8.0 Key EC000453
    ETIM 9.0 Key EC000453
    UNSPSC Key 27112410
    Cable tie guns Cable tie guns

    Cable tie guns

    From manual and pneumatic cable tie guns to automatic cable tie guns, Hellermanntyton offers a wide range of cable tie tensioning tools for a variety of requirements. Always reliable and comfortable and ideal for long-term use.
