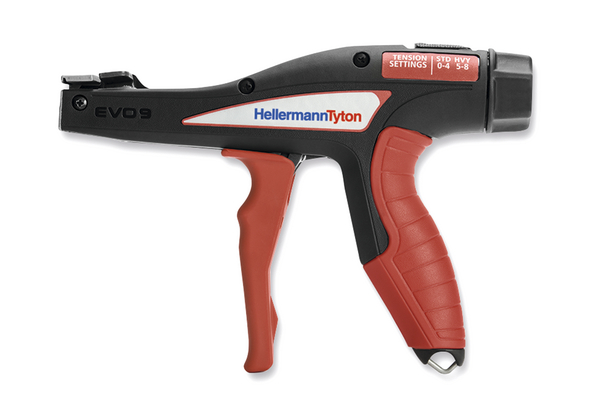

Cable tie tool for 4.8-13.5mm, manual, 0.373kg, red/black
Art.-No. 110-80000 | EVO9-MET/PL-BK/RD |  Details

Ergonomic, slip-proof handle for a comfortable and secure grip.

    • Standard grip span (90 mm) and short grip span (80 mm) available
    • Ergonomic, slip-proof handle for a comfortable and secure grip
    • Extremely low-maintenance
    • Fast and precise application with minimum effort (TLC-technology)
    • Convenient and simple tension adjustment
    • Integrated 3 position quick adjustment override (EVO9/EVO9SP/EVO9HT)
    • Housing made of resilient and lightweight glass fibre-reinforced polyester
    Show more
    Add to watchlist
    Downloads
    Application The EVO9 is available in a standard grip span 90 mm (EVO9) or short grip span 80 mm (EVO9SP), for smaller hands. Both tools perform between 53 N and 307 N. The EVO9HT (high tension) was designed to apply HellermannTyton cable ties from 120 N until 516 N with a maximum width of 13.5 mm.
    Colour Red (RD), Black (BK)
    For Cable Tie Width 0.18-0.53"
    For Cable Tie Width 4.8-13.5mm
    For Ties T50, T80, T120, T150, T250, T255, WS
    Material Metal (MET), Plastic (PL)
    Operation manual
    PART DESCRIPTION EVO9-MET/PL-BK/RD
    Pack Cont. 1pc.
    Package Content packed in carton
    Product Family EVO9 up to 13.5 mm strap width
    Product Group Manual tensioning tool plastic housing
    Strap Thickness max. 0.08"
    Strap Thickness max. 2.0mm
    Technical Description Standard Hand Span 90 mm
    Tool property Manual clipping
    Tool suitable cable tie material Plastic
    Type EVO9
    Height (H) 135mm
    Length (L) 191mm
    Strap Width max. 13.5mm
    Strap Width max. (G) 0.5"
    Weight/Unit 0.373kg
    Width (W) 33mm
    CE Certification No
    CSA Certified No
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026511283
    Packaging 1 - Qty 1
    Packaging 1 - Weight (kg) 0.36kg
    Packaging 3 - Weight (kg) 11.54kg
    ETIM 7.0 Key EC000453
    ETIM 8.0 Key EC000453
    ETIM 9.0 Key EC000453
    UNSPSC Key 27112410
