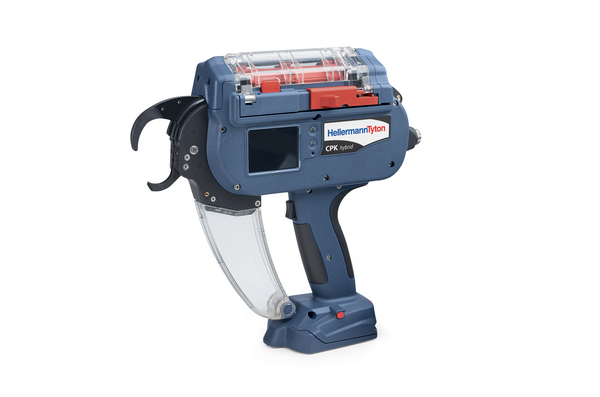

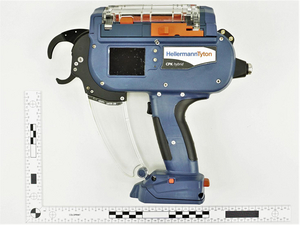

Automatic cable tie tool Dmax=20mm, for 2.5mm, 1.813kg, blue
Art.-No. 106-60000
| Autotool_CPK_hybrid-MET/PL-BU
|
Details

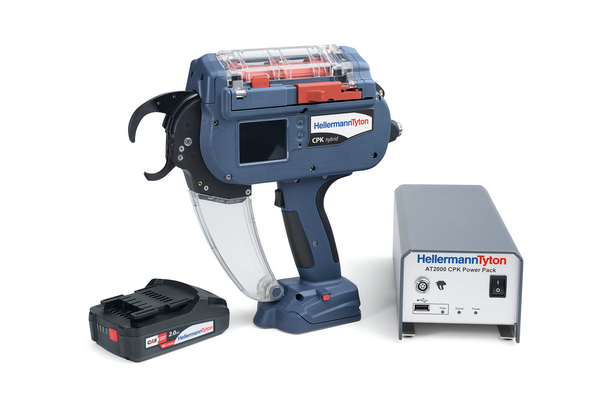

- Cable tying system operated electrically via Power pack or with a battery
- Power supply through Power pack CPK - Input: 100-240 V a.c., 50/60 Hz; Output: 25.2 V d.c., max. 150 W
- Or use with 18V 2,0 Ah rechargeable Li-Ion Battery
- Integration into fully automated production lines (Power pack CPK with control box necessary)
- Cycle time 0.65 - 1.0 sec. depending on quality and force
- Stationary and flexible use with devices possible or independently with battery
- HT Data Management CPK software (included) - for extensive data evaluation and monitoring of the tensioning process
- User-friendly menu in various languages included
- Process-reliable, constant and reproducable bundling and cutting up to Ø 20 mm
- Removable handle for space-saving integration into automated production lines
More products in this product group:
| Application | The Autotool CPK hybrid T18RA offers full flexibility for automated cable tying. Choose your option: Cordless operation with rechargeable batteries, corded with main power via power pack or a mixture of both. When working on several projects, at different locations or in tight spaces without power supply, the new CPK hybrid with battery option allows you to move about freely. The CPK hybrid has been developed to: Speed up bundling processes, make the production more consistent and efficient and simplify the operation and user-friendly ergonomics. It offers a display for the settings and presets, user information and the software "HT Data Management CPK". The CPK hybrid is ideally suited for handling high volume applications in wire harness facilities, automotive and industrial companies, in the packaging sector and in the solar industry. With either the Bench mount kit CPK or the Overhead suspension CPK, the CPK hybrid is suitable for both stationary and flexible applications. |
| Bench mount kit | Bench mount kit CPK with foot pedal operation |
| Colour | Dark Blue (DKBU) |
| Description | Autotool CPK hybrid T18RA |
| For Cable Tie Width | 0.1 - 0.1" |
| For Cable Tie Width | 2.5 - 2.5mm |
| For Ties | T18RA50, T18RA3500, T18RA5000 |
| Material | Metal (MET), Plastic (PL) |
| Operation | electrical |
| PART DESCRIPTION | Autotool_CPK_hybrid-MET/PL-BU |
| Pack Cont. | 1pc. |
| Package Content packed in | case |
| Product Family | CPK hybrid T18RA |
| Product Group | Automatic bundling up to Ø 20 mm |
| Short Description | Autotool CPK hybrid T18RA automated cable tying system |
| Tool suitable cable tie material | Plastic |
| Type | Autotool_CPK_hybrid |
| Bundle Diameter max (metric) | 20mm |
| Bundle ∅ | 0.7-20mm |
| Bundle ∅ min. | 0.7mm |
| Cable Tie Head Height (metric) | 4.2mm |
| Cable Tie Head Width (metric) | 4.6mm |
| Cycle Time | 0.65-1.0 sec. depending on quality and force |
| Height (H) | 270.0mm |
| Length (L) | 285.0mm |
| Min.Tensile Strength | 82N |
| Power Supply | Electronically operated or battery operated |
| Strap Width max. | 2.5mm |
| Tension Setting | Adjustable |
| Weight/Unit | 1.813kg |
| Width (W) | 86.0mm |
Download
|
|
|
| Country of Origin | DE |
| Customs Number | 84672985 |
| GTIN-13 / EAN | 4031026671123 |
| Packaging 1 - Height (m) | 0.14m |
| Packaging 1 - Length (m) | 0.582m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | pcs. |
| Packaging 1 - Volume (m³) | 0.03178m³ |
| Packaging 1 - Weight (kg) | 4.43kg |
| Packaging 1 - Width (m) | 0.39m |

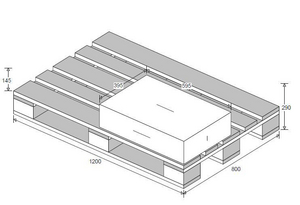

| Packaging 3 - Height (m) | 0.145m |
| Packaging 3 - Length (m) | 0.595m |
| Packaging 3 - Qty | 1 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.0341m³ |
| Packaging 3 - Weight (kg) | 5.264kg |
| Packaging 3 - Width (m) | 0.395m |

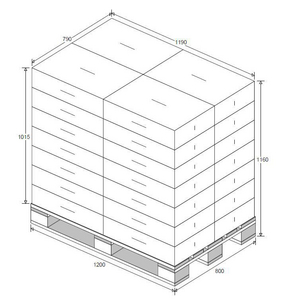

| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Type | pallet |
| Packaging 4 - Width (m) | 0.8m |
