Cable tie tool for 2.5 - 2.5mm, electrical, 21kg, metal
Art.-No. 105-00013 | QS-101 NEW-MET-ML |  Details

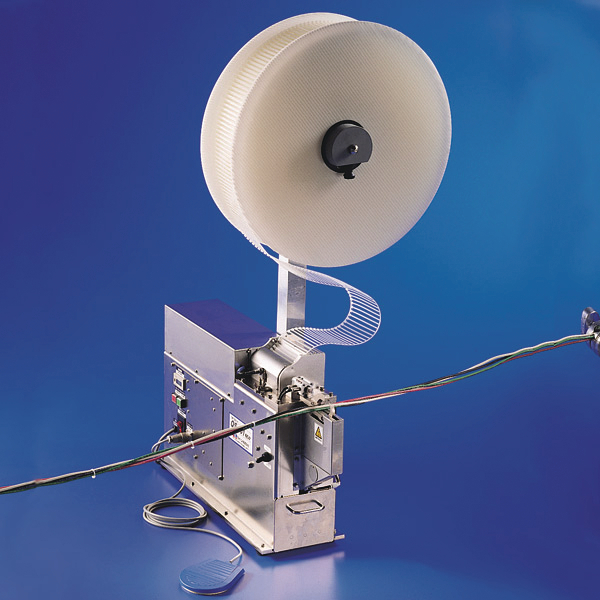

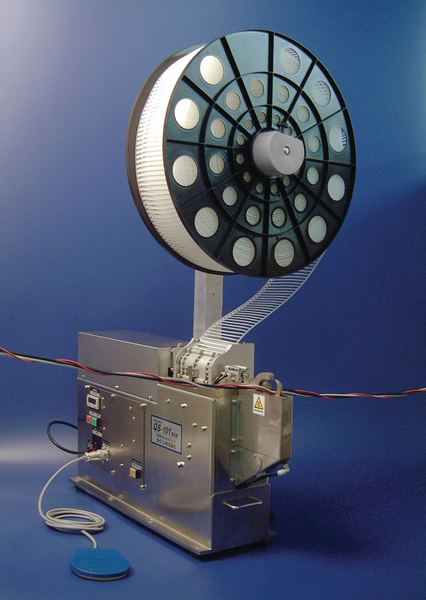

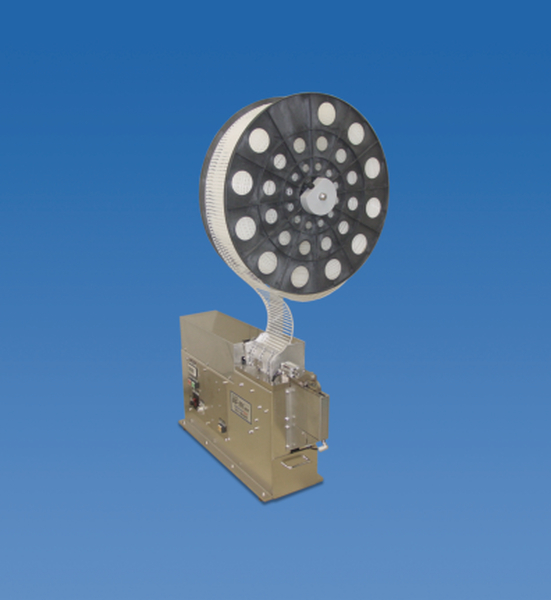

The Quick Tool is an automatic bench mount system suited for high volume cable tie applications.

    • Automatic binding machine of desk type and air type (maximum binding diameter: 16.0 mm).
    • ●Desktop installation type. Bundled by pressing the foot pedal that you can work with both hands.
    • ●Easy to install anywhere with power supply (AC100V ~ AC240V) and air supply equipment.
    • ●A stable and reliable bundling operation.
    Add to watchlist
    Application Harness Binding
    Colour Metal (ML)
    For Cable Tie Width 2.5 - 2.5mm
    Material Metal (MET)
    Operation electrical
    PART DESCRIPTION QS-101 NEW-MET-ML
    Pack Cont. 1pc.
    Package Content packed in carton
    Product Family Autotool QS101 NEW
    Product Group Bench Mount Automatic bundling up to Ø 16 mm
    Tool suitable cable tie material Plastic
    Type QS-101 NEW
    Wattage 20W
    for Air Pressure min - max - 6
    Air Pressure (max.) 6Bar
    Bundle Diameter max (metric) 16mm
    Bundle ∅ 0.7-16mm
    Bundle ∅ min. 0.7mm
    Height (H) 770mm
    Length (L) 630mm
    Operational Voltage AC100V／AC240V
    Weight/Unit 21kg
    Width (W) 210mm
    Country of Origin JP
    GTIN-13 / EAN 4944387970791
    UNSPSC Key 27112410
