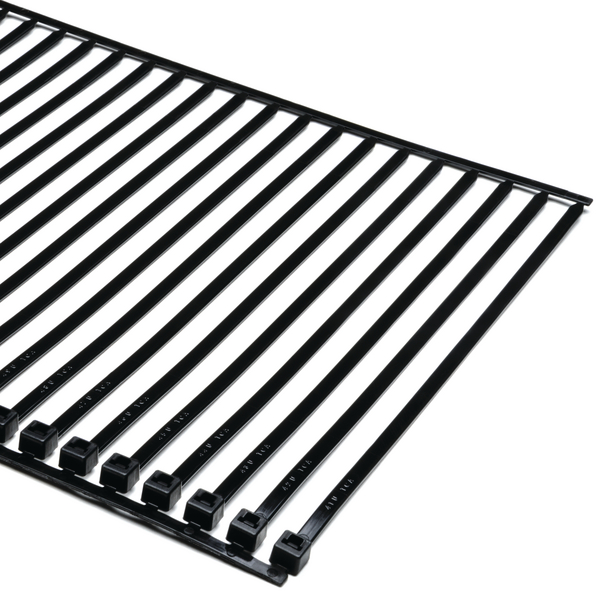

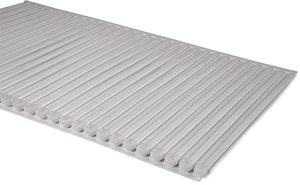

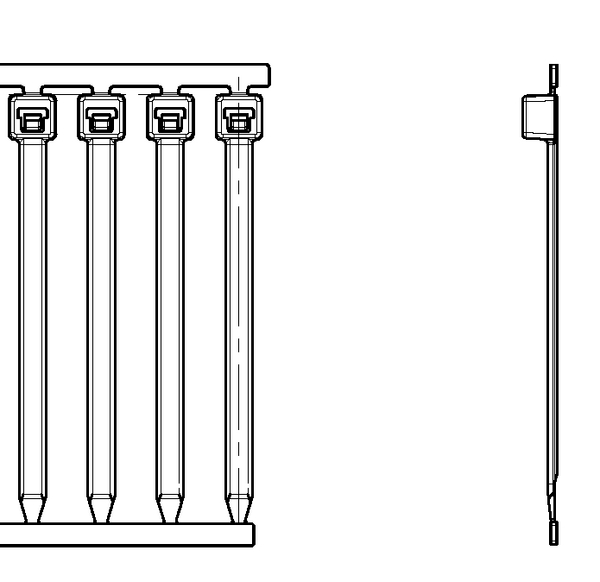

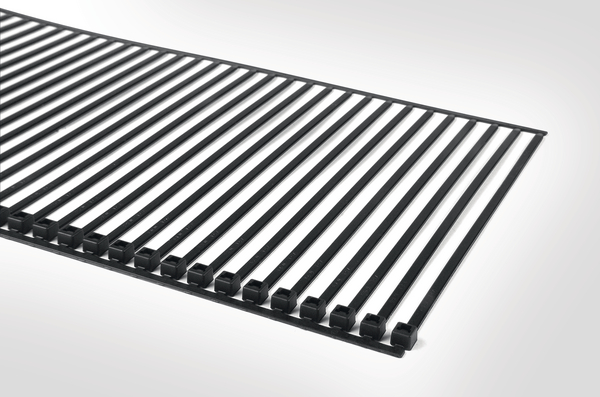

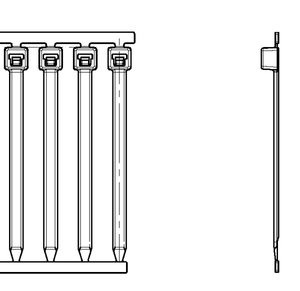

Cable tie for autotools, on reel, 152.4x3.6mm, Dmin=1.5mm, Dmax=31.75mm, black, 3000pcs.
Art.-No. 103-00004 | T30RA-PA66HS-BK |  Details

    • Available in reels of 3,500 cable ties
    • Repetitive tension on the bundles
    • Easily recyclable
    Package size
    Add to watchlist
    Downloads

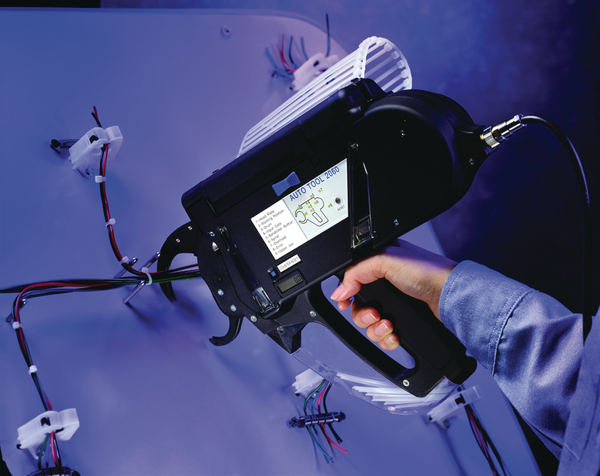

    Application The inside-serrated cable ties are designed for use specifically in the automatic cable tying systems. The Autotool 2060 is ideally suited for handling high volumes applications in wire harness facilities, automotive and industrial companies as wells as the packaging sector.
    Colour Black (BK)
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION T30RA-PA66HS-BK
    Pack Cont. 3000pcs.
    Package Content packed in reel
    Product Family Cable ties for AutoTool 2060
    Product Group Automatic Cable Tying Systems
    Releasable Closure (Yes/No) No
    Tool suitable cable tie material Plastic
    Type T30RA
    Variant on reel
    Bundle Diameter max (metric) 31.75mm
    Bundle ∅ 1.5-31.75mm
    Bundle ∅ min. 1.5mm
    Length (L) 152.4mm
    Min.Tensile Strength 135N
    Tension Setting Adjustable
    Thickness (T) 1.2mm
    Width (W) 3.6mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 V2
    Halogen-free Yes
    Operating Temperature -40 °C to +125 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL OCD link Link Link Link Link
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) Yes
    UL Type 11
    UL-File Number E64139
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026423289
    Packaging 1 - Weight (kg) 1.8kg
    Packaging 3 - Height (m) 0.4064m
    Packaging 3 - Length (m) 0.46355m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0897m³
    Packaging 3 - Weight (kg) 8.92kg
    Packaging 3 - Width (m) 0.47625m
    Reel Diameter 17.7"
    Reel Diameter 450.0mm
    Reel Weight 3.175kg
    Reel Weight 7lbs
    Reel Width 7.197"
    Reel Width 182.8mm
    UNSPSC Key 39121703
