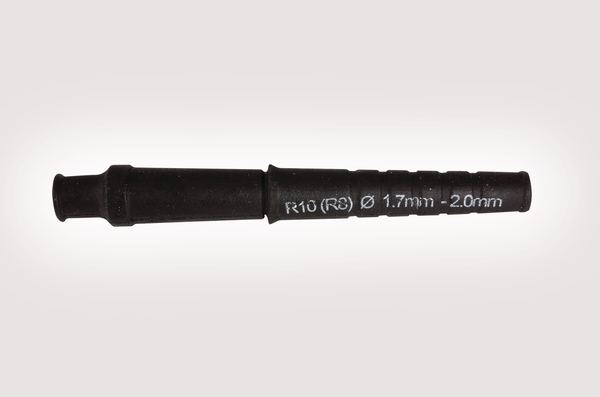

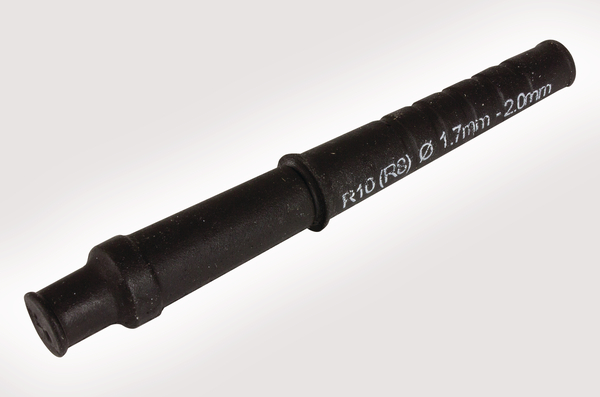

Cablelok R10 1.7-2.0mm x10
Art.-No. 857-50164 | CABLELOK-R10-10 |  Details

R Series Cablelok

    • Cable range coverage from 1.7mm to 2.0mm
    • Seals to in excess of 6m head of water
    • Highly repeatable installation - the quality of the seal is not dependant on the skill of the engineer
    • Ideal for use in hazardous areas as no heat or gas is required for installation
    • Supplied in multiples of 10
    • Supplied with installation lubricant sachets
    Show more
    Add to watchlist
    Cable ∅ max 2.0mm
    Cable ∅ min 1.7mm
    Colour Black (BK)
    Content 10 x CABLELOK-R10(R8), 10 x Lubricating Wipes
    Description HellermannTyton’s patented Cablelok mechanical seal enables fast safe cable installation, providing a highly repeatable and consistent seal between the cable and the closure port with excellent non-leak performance. Tested to in excess of 6m head of water, the Cablelok does not rely on the skill and experience of the engineer to achieve the required seal, whilst installation times are typically reduced by up to 90%.
    Material Chloroprene Rubber (CR)
    PART DESCRIPTION CABLELOK-R10-10
    Pack Cont. 10pcs.
    Package Content packed in bag
    Port R
    Port count 1
    Product Family Cablelok
    Product Group R Port Cablelok
    Short Description Cablelok R10 1.7-2.0mm x10
    Technical Description The R10 Port Cablelok is a mechanical seal manufactured from external grade flexible polychloroprene designed to be used with the range of HellermannTyton dome closures. The R10 cablelok provides a seal for cables within a cable range of 1.7mm – 2.0mm.
    Type CABLELOK-R10-10
    Variant Round - R
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Country of Origin GB
    Customs Number 40169300
    GTIN-13 / EAN 5022660102165
    Packaging 1 - Height (m) 0.381m
    Packaging 1 - Length (m) 0.254m
    Packaging 1 - Qty 10
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0m³
    Packaging 1 - Weight (kg) 0.5kg
    ETIM 7.0 Key EC000879
    ETIM 8.0 Key EC000879
    ETIM 9.0 Key EC000879
    UNSPSC Key 43202218
