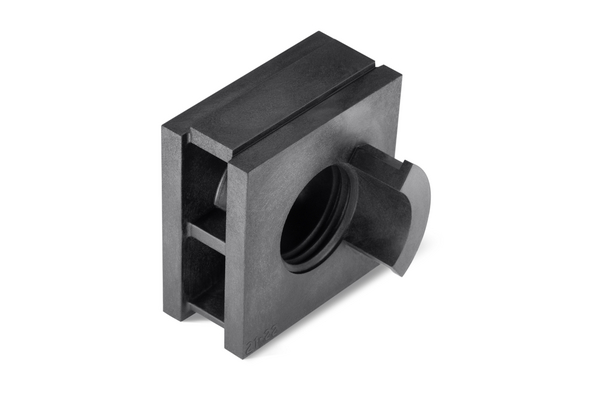

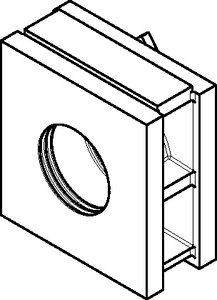

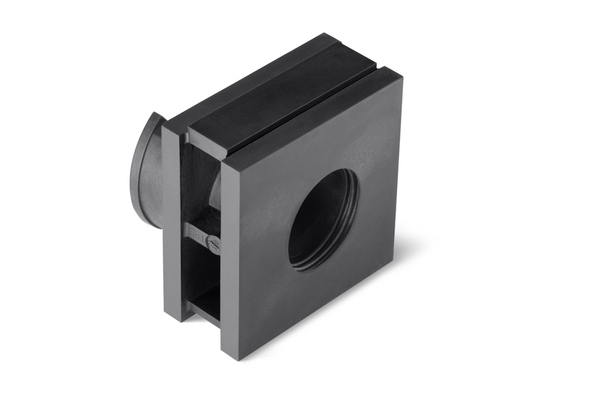

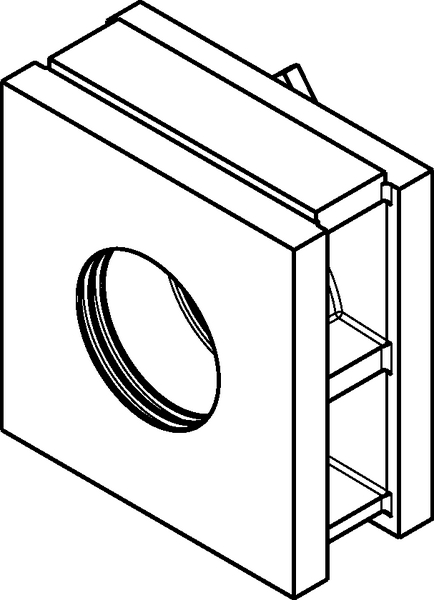

Cable entry system, Insert large, 42.2x42.2x20.0mm, ∅21.0 - 22.0mm, black, 10pcs.
Art.-No. 440-00029
| VP-L_21-22_Ins-sgl-TPE-BK
|
Details
- Integrated cable diameter tolerance compensation
- Modular application for both insert sizes (S and L)
- Integrated strain relief
- IP 65 and IP 66
More products in this product group:
| Application | VarioPlate cable entry system inserts grommets are used in combination with VarioPlate frames for time and space saving cable installation on all types of panel builder housings and controll boxes. The versatile design covers cable diameter from 3 to 33mm. Inserts grommets are available in one, two, four holes and blindplugs. |
| Cable ∅ max | 22.0mm |
| Cable ∅ min | 21.0mm |
| Colour | Black (BK) |

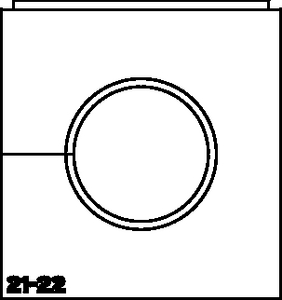

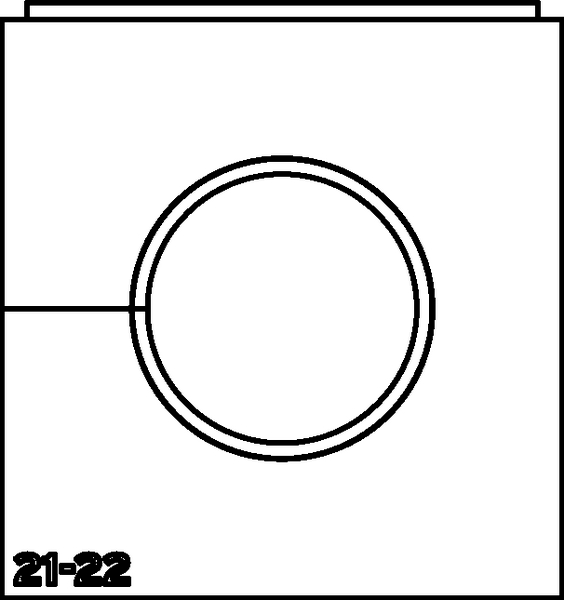

| Description | VarioPlate Insert Grommet Large Single 21-22 mm |
| Material | Thermoplastic Elastomer (TPE) |
| PART DESCRIPTION | VP-L_21-22_Ins-sgl-TPE-BK |
| Pack Cont. | 10pcs. |
| Package Content packed in | bag |
| Product Family | VarioPlate Insert Grommet Large Single 21-22 mm |
| Product Group | VarioPlate Cable Entry System |
| Short Description | VarioPlate Insert Grommet Large Single 21-22 mm |
| Type | VP-L_21-22_Ins-sgl |
| Variant | Both sides open |
Download
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V0 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| IP-Rating | IP66 |
| Operating Temperature | -40 °C to +100 °C |
| ROHS compliant | Yes |
| Self extinguishing | Yes |
| Shelf Life | Unlimited |
| Specifications |
|
| Specifications | csa-C22.2 No. 94.1, csa-C22.2 No. 94.2, UL 50, UL 50E |
| UL OCD link | Link Link |
| UL Recognized (US and Canada) | Yes |
| UL-File Number | E526974 |
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026686509 |
| Packaging 1 - Height (m) | 0.072m |
| Packaging 1 - Length (m) | 0.23m |
| Packaging 1 - Qty | 10 |
| Packaging 1 - Type | carton |
| Packaging 1 - Volume (m³) | 0.00132m³ |
| Packaging 1 - Weight (kg) | 0.255kg |
| Packaging 1 - Width (m) | 0.08m |
| Packaging 2 - Height (m) | 0.216m |
| Packaging 2 - Length (m) | 0.3048m |
| Packaging 2 - Volume (m³) | 0.0176m³ |
| Packaging 2 - Width (m) | 0.267m |
