19/02/2025

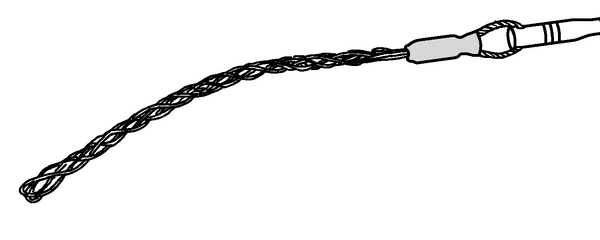

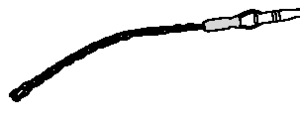

Accessory, CABLE SCOUT, 1pc. (CS-ACG0430)
Art.-No. 897-00028 | CS-ACG0430 Details

This product is not available anymore.
Application The Cable Scout rods are made of GRP (Glass Reinforced Plastic) that provides an excellent combination of strength and flexibility. The end connectors are manufactured from high quality brass. They are fixed to the rod using an ultra strong adhesive. 100 % of all rod ends are tested to a pull weight of 80 kg without breaking ensuring a high level of quality and reliability.

The rods can be screwed together and/or fitted with one or more of the clever attachments. Due to the uniformed connector size all rod types andaccessories can be connected to offer a wide range of application possibilities.
Cable ∅ max 30.0mm
Cable ∅ min 4.0mm
PART DESCRIPTION CS-ACG0430
Pack Cont. 1pc.
Package Content packed in pack
Quantity 5
Type CS-ACG0430
Bundle Diameter max (metric) 30mm
Bundle ∅ 4-30mm
Bundle ∅ min. 4mm
Length (L) 295mm
Country of Origin GB
GTIN-13 / EAN 4031026268354
Packaging 1 - Height (m) 0.017m
Packaging 1 - Length (m) 0.264m
Packaging 1 - Qty 1
Packaging 1 - Volume (m³) 0.00031
Packaging 1 - Weight (kg) 0.0850kg
Packaging 1 - Width (m) 0.068m
ETIM 7.0 Key EC003007
ETIM 8.0 Key EC003007
ETIM 9.0 Key EC003007
