Aluminium frame mount for Bosch Rexroth/MayTec, W=8.0mm, T=2.2mm, black, 25pcs.
Art.-No. 151-03247 | ACFM4W8PT2.2-PA66/PA6HIRHS-BK |  Details

    • Quick and easy to install (quarter-turn fixing)
    • 2-way cable tie entry, allowing cables to be fixed lengthways or sideways to the profile
    • Curved design ensures that cables are supported centrally to the mount
    • Secure fixing once installed
    • Suitable for cable ties up to 8 mm wide
    Show more
    Add to watchlist
    Downloads Datasheet
    Application The ACFM4W8PT2.2 is specially designed for the Bosch Rexroth profile with a T-slot width of 8 mm and external dimensions of 30 mm. The fact that no mounting hole is necessary, the installation and handling of the ACFM is very simple. The Aluminium frame mount is firmly fixed at the favoured place with a quarter turn and then fits firmly. Can be easily loosened and repositioned at any time.
    Colour Black (BK)
    For Ties T50 T80 T120 X80 X120 Q50 Q120
    Material Polyamide 6.6 (PA66), Polyamide 6, high impact modified, heat stabilised (PA6HIRHS)
    PART DESCRIPTION ACFM4W8PT2.2-PA66/PA6HIRHS-BK
    Pack Cont. 25pcs.
    Package Content packed in bag
    Product Family For Bosch Rexroth Strut profiles slot 8
    Product Group Fixing elements for aluminium frames
    Short Description The ACFM4W8PT2.2 is specially designed for the Bosch Rexroth profile with a T-slot width of 8 mm and external dimensions of 30 mm
    Type ACFM4W8PT2.2

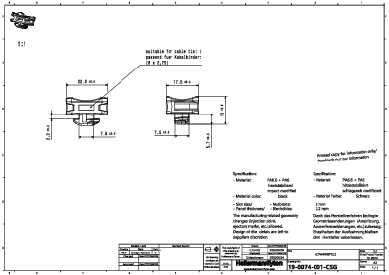

    Height (H) 9.3mm
    Height (H2) 15.0mm
    Length (L) 17.5mm
    Panel Thickness max. 2.2mm
    Strap Width max. (G) 8.0mm
    Weight/Unit 0.002414kg
    Width (W) 22.5mm
    for Panel Thickness min - max 2.2 - 2.2 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026646480
    Packaging 1 - Height (m) 0.04m
    Packaging 1 - Length (m) 0.12m
    Packaging 1 - Qty 25
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00127m³
    Packaging 1 - Weight (kg) 0.065876kg
    Packaging 1 - Width (m) 0.265m
    Packaging 3 - Height (m) 0.17m
    Packaging 3 - Length (m) 0.288m
    Packaging 3 - Qty 600
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0087m³
    Packaging 3 - Weight (kg) 1.711024kg
    Packaging 3 - Width (m) 0.178m
    Packaging 4 - Height (m) 1.164m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 61200
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.117m³
    Packaging 4 - Weight (kg) 196.685kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
