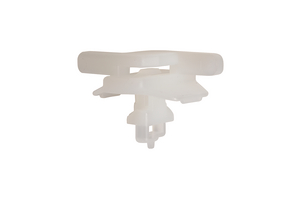

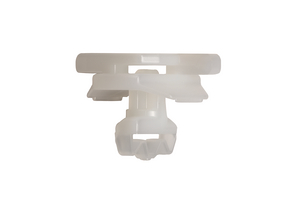

Aluminium frame mount, T=1.5 – 1.9mm, natural, 100pcs.
Art.-No. 151-01610 | AFLM20-1-PA66-NA |  Details

AFLM30.

    Add to watchlist
    Downloads Datasheet

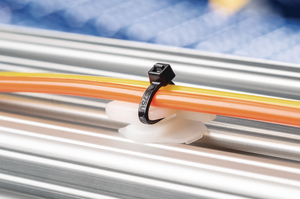

    Application Our aluminium frame mounts are specially designed for aluminium construction profiles. Theirs installation and handling is very simple. At every favoured place on the profile just with a quarter turn the mount is firmly fixed. Also it can be easily loosened and repositioned at any time. The mounts are custom developed for several aluminium construction profiles.
    Colour Natural (NA)
    For Pipe Size/Type Applicable Aluminum Frames: 20mm square type Panel Thickness: 1.5～2mm Slot Width:6mm
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION AFLM20-1-PA66-NA
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family AFLM series
    Product Group Fixing mount for aluminum frame
    Short Description Mounts which are special designed for aluminum construction profiles
    Type AFLM20-1
    Height (H) 12.5mm
    Length (L) 19.5mm
    Panel Thickness max. 1.5 – 1.9mm
    Width (W) 14mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin JP
    GTIN-13 / EAN 4944387113891
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
