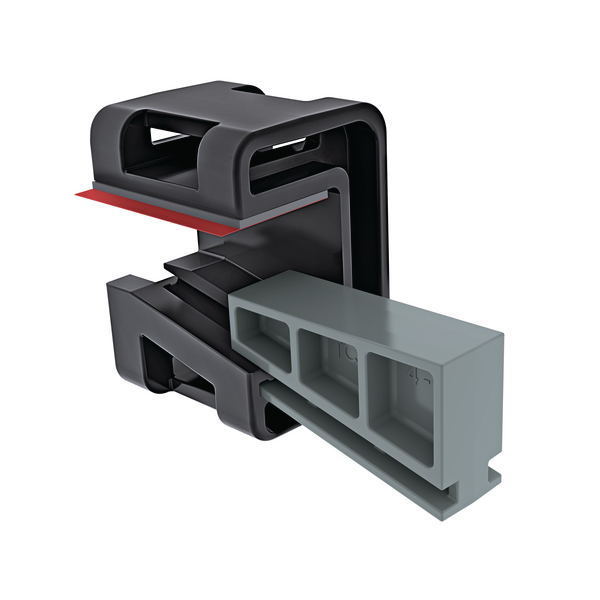

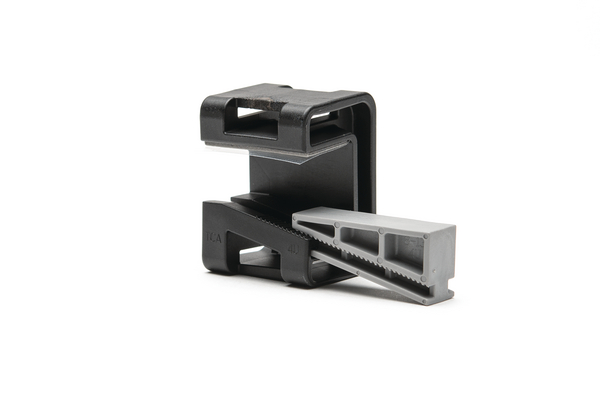

Cable tie mount for edge, Wmax=15.0mm, T=8.0 - 13.0mm, black/grey, 200pcs.
Art.-No. 151-01567 | BCCLGA-PA66HSGF30-BK/GY |  Details

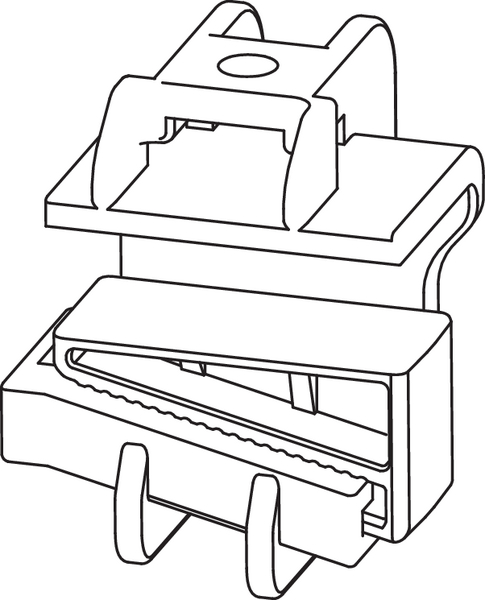

Two-piece ratcheting wedge design allows for easy, positive-locking size adjustment.

    • Easy to install
    • No damage to surfaces
    • Easy maintenance of bundle by simply changing cable tie
    • Cable tie head can be moved after bundling
    • Applicable to a wide range of panel thicknesses
    Show more
    Add to watchlist
    Downloads Datasheet
    Application Primarily designed for use in the automotive/truck industry, these parts can be used in a wide variety of industries and applications where bundles need mounting. These heavy duty harness clips help to fix and secure cables, lines and hydraulic lines in truck, agriculture and railway vehicle construction, as well as in the ship building industry and industrial buildings.
    Colour Black (BK), Grey (GY)
    Fixation Method Edge Clip
    Key product features vibration absorbing, for multiple routing
    Material Polyamide 6.6, heat stabilised, glass-fibre reinforced (PA66HSGF30)
    PART DESCRIPTION BCCLGA-PA66HSGF30-BK/GY
    Pack Cont. 200pcs.
    Package Content packed in bag
    Product Family Beam clamps / Wedge clips
    Product Group Heavy duty harness clips
    Short Description Beam clamp for heavy duty applications
    Type BCCLGA
    Height (H) 43.10mm
    Height (H2) 12.50mm

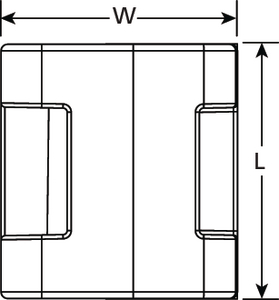

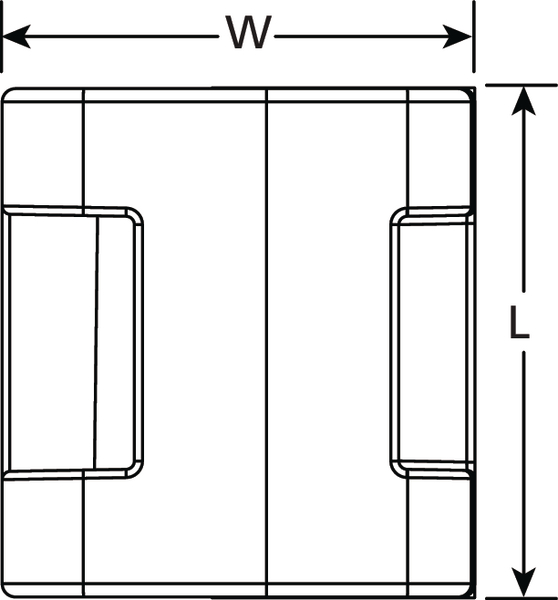

    Length (L) 30.8mm
    Length (L2) 27.0mm
    Panel Thickness max. 8.0 - 13.0mm
    Strap Width max. (G) 0.59"
    Strap Width max. (G) 15.0mm
    Width (W) 28.6mm
    for Panel Thickness min - max 8 - 13 mm
    Adhesive Acrylic foam
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +140 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026550725
    Packaging 1 - Weight (kg) 4.03697kg
    Packaging 3 - Height (m) 0.1508125m
    Packaging 3 - Length (m) 0.4365625m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0176m³
    Packaging 3 - Weight (kg) 13.15kg
    Packaging 3 - Width (m) 0.2667m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121702
