Cable tie mount for screw fixation, Wmax=13.5mm, ∅8.2 mm, M8 Screw, black, 250pcs.
Art.-No. 151-03953 | CTMM8-PA6GF30-BK |  Details

    • Design offers secure alignment to the bundle
    • Possible replacement of cushion clamps and/or metal clamps
    • Eliminates the needs for multiple sized fix diameter clamps
    • For heavy duty cable ties up to 13.5 mm width
    • Easy maintenance of bundle by simply changing the cable tie
    Show more
    Add to watchlist
    Downloads Datasheet

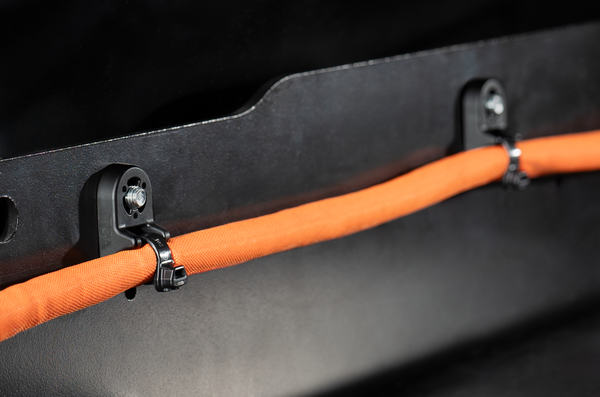

    Application These heavy duty mounts (HDM) have been primarily designed for use in the automotive and truck industry. Nowadays they can be found in a variety of applications requiring heavy duty mounting in areas like the railway, defence and/or agriculture industry.
    Colour Black (BK)
    Fixation Method Screw Mounting and Rivet
    Key product features vibration absorbing
    Material Polyamide 6, glass-fibre reinforced (PA6GF30)
    Mounting Screw Type M8 Screw
    PART DESCRIPTION CTMM8-PA6GF30-BK
    Pack Cont. 250pcs.
    Package Content packed in bag
    Product Group Harness clip for heavy duty applications, for screws or threaded bolts
    Type CTMM8
    Height (H) 16.0mm
    Length (L) 38.0mm
    Strap Width max. (G) 0.5"
    Strap Width max. (G) 13.5mm
    Weight/Unit 0.004986kg
    Width (W) 24mm
    for Hole ∅ (FH) 8.2 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026697871
    Packaging 1 - Height (m) 0.06m
    Packaging 1 - Length (m) 0.22m
    Packaging 1 - Qty 250
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00356m³
    Packaging 1 - Weight (kg) 1.260362kg
    Packaging 1 - Width (m) 0.27m
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 2750
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 14.513982kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.164m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 55000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.117m³
    Packaging 4 - Weight (kg) 311.31kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
