Cable tie mount for screw fixation, Wmax=13.5mm, ⌀8.1 mm, ⌀M8, M8 Screw, black, 250pcs.
Art.-No. 151-03333 | CTMM8B-PA66HIRHS-BK |

Copied
Heavy Duty Mounts HDM-Series, patent number US5820083.

    • Design offers secure alignment to the bundle
    • Possible replacement of cushion clamps and/or metal clamps
    • Eliminates the needs for multiple sized fix diameter clamps
    • For heavy duty cable ties up to 13.5 mm width
    • Easy maintenance of bundle by simply changing the cable tie
    Show more
    Add to watchlist
    Downloads
    Application These heavy duty mounts (HDM) have been primarily designed for use in the automotive and truck industry. Nowadays they can be found in a variety of applications requiring heavy duty mounting in areas like the railway, defence and/or agriculture industry.
    Colour Black (BK)
    Description Cable tie mount for screw fixation, M8 Screw
    Fixation Method Screw Mounting and Rivet
    Key product features vibration absorbing
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Mounting Screw Type M8 Screw
    PART DESCRIPTION CTMM8B-PA66HIRHS-BK
    Pack Cont. 250pcs.
    Package Content packed in bag
    Product Group Harness clip for heavy duty applications, for screws or threaded bolts
    Short Description Cable tie mount for screw fixation, Wmax=13.5mm, ⌀8.2 mm, ⌀M8, M8 Screw, black, 250pcs.
    Strap Thickness max. 2.5mm
    Type CTMM8B
    Type of connection Screw connection

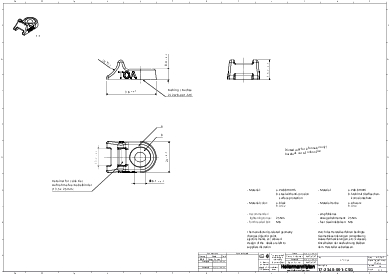

    Height (H) 15.7mm
    Length (L) 38.0mm
    Min.Tensile Strength 25N
    Strap Width max. (G) 0.5"
    Strap Width max. (G) 13.5mm
    Stud ⌀ M8
    Weight/Unit 0.00959kg
    Width (W) 24mm
    for Hole ⌀ (FH) 8.1 mm
    ELV compliant (Article 4 - 2) YES
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C, (+135 °C, 200 h)
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026762630
    Packaging 1 - Height (m) 0.06m
    Packaging 1 - Length (m) 0.25m
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0033m³
    Packaging 1 - Weight (kg) 0.96798kg
    Packaging 1 - Width (m) 0.22m
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Width (m) 0.398m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 31162305
