23/12/2024

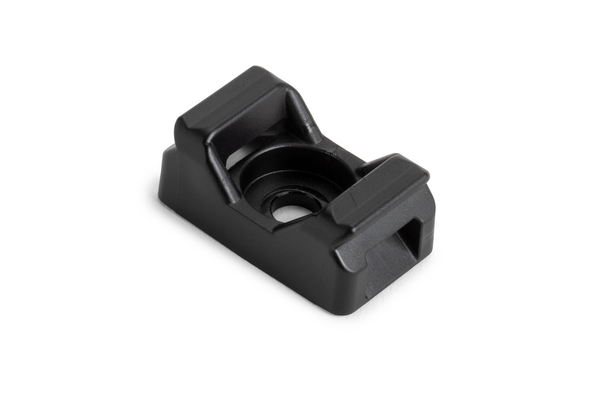

Cable tie mount for screw fixation, Wmax=8.4mm, ∅5.35 mm, #10 (M5) Screw, black, 100pcs.
Art.-No. 151-04156 | CTSM3CZS-PA66HS-BK |  Details

    Package size
    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Fixation Method Screw Mounting and Rivet
    For Ties T18 - T120
    Material Polyamide 6.6, heat stabilised (PA66HS)
    Mounting Screw Type #10 (M5) Screw
    PART DESCRIPTION CTSM3CZS-PA66HS-BK
    Pack Cont. 100pcs.
    Package Content packed in bag
    Strap Thickness max. 0.07"
    Strap Thickness max. 1.9mm
    Type CTSM3CZS

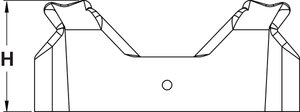

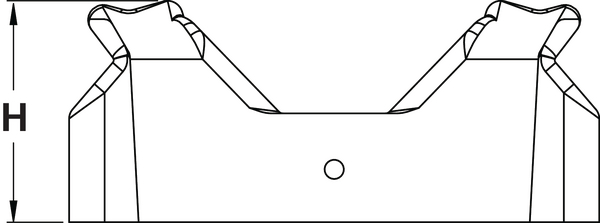

    Height (H) 11.7mm
    Height (H2) 5.75mm

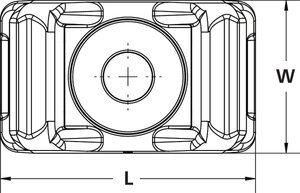

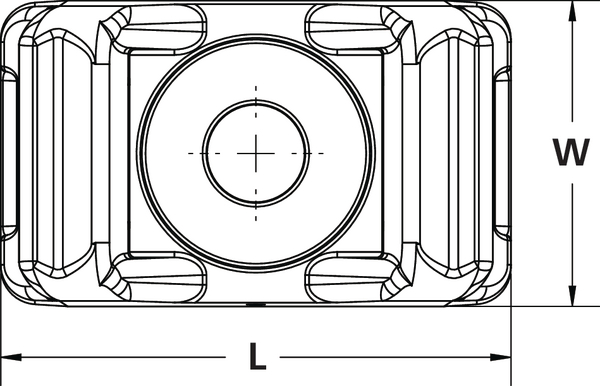

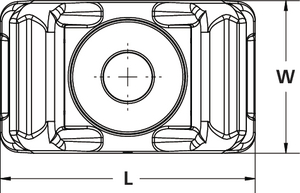

    Length (L) 28.0mm
    Strap Width max. (G) 0.33"
    Strap Width max. (G) 8.4mm
    Width (W) 16.8mm
    for Hole ∅ (FH) 5.35 mm
    for Hole ∅ (FH2) 12.51mm
    CE Certification Yes
    CSA Certified No
    Flammability UL 94 V2
    Halogen-free Yes
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised No
    Country of Origin MX
    GTIN-13 / EAN 4031026739007
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Width (m) 0.3175m
    Packaging 4 - Qty 120000
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
    Self-Adhesive cable tie mounts Self-Adhesive cable tie mounts

    Self-Adhesive cable tie mounts

    HellermannTyton self-adhesive cable tie mounts are perfectly suited for cable fastening on round and angled surfaces. To save time, reduce part diversity and weight.
