Cable tie mount for screw fixation, Wmax=13.5mm, ⌀M8, ⌀M8, black, 150pcs.
Art.-No. 151-04446 | DCTMM8B-PA66HIRHS/ST-BK |

Copied
Heavy Duty Mounts HDM-Series, patent number US5820083.

    • Design offers secure alignment to the bundle
    • Possible replacement of cushion clamps and/or metal clamps
    • Eliminates the needs for multiple sized fix diameter clamps
    • For heavy duty cable ties up to 13.5 mm width
    • Easy maintenance of bundle by simply changing the cable tie
    Show more
    Add to watchlist
    Downloads
    Application These heavy duty mounts (HDM) have been primarily designed for use in the automotive and truck industry. Nowadays they can be found in a variety of applications requiring heavy duty mounting in areas like the railway, defence and/or agriculture industry.
    Colour Black (BK)
    Fixation Method Screw Mounting and Rivet
    Key product features vibration absorbing
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS), Steel (ST)
    PART DESCRIPTION DCTMM8B-PA66HIRHS/ST-BK
    Pack Cont. 150pcs.
    Package Content packed in bag
    Product Group Harness clip for heavy duty applications, for screws or threaded bolts
    Type DCTMM8B

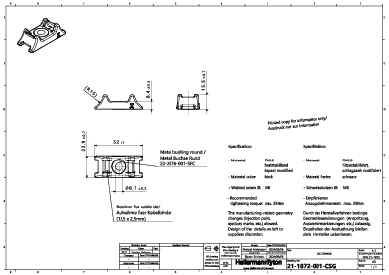

    Height (H) 15.5mm
    Length (L) 52mm
    Strap Width max. (G) 0.5"
    Strap Width max. (G) 13.5mm
    Stud ⌀ M8
    Weight/Unit 0.0113kg
    Width (W) 23.9mm
    for Hole ⌀ (FH) M8
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026760162
    Packaging 1 - Height (m) 0.07m
    Packaging 1 - Length (m) 0.315m
    Packaging 1 - Qty 150
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00606375m³
    Packaging 1 - Weight (kg) 1.708862kg
    Packaging 1 - Width (m) 0.275m
    Packaging 3 - Height (m) 0.184m
    Packaging 3 - Length (m) 0.58m
    Packaging 3 - Qty 1200
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0406m³
    Packaging 3 - Weight (kg) 14.270896kg
    Packaging 3 - Width (m) 0.38m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 28800
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 363.528kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 31162305
