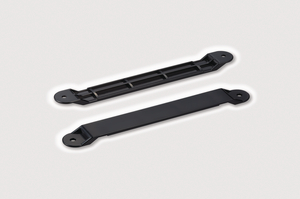

Cable tie mount for screw fixation, ∅4.9 mm, ∅M4, M4 Screw, black, 25pcs.
Art.-No. 151-03295 | HCS2025L-PA66HSW-BK |  Details

    • Can be installed easily without welding.
    • This light plastic cable support does not damage the cables.
    • Improves workability and reduces number of parts to be used since this part can be installed without cushioning or taping on the cables.
    • With cable ties, even thin cables can be fixed tightly without misalignment.
    • Easy to branch out the cables.
    Show more
    Add to watchlist
    Downloads Datasheet
    Application Cable Support are specially designed to support cables in railway vehicles but can be used in any other industires. It offers easy installation using cable ties.
    Colour Black (BK)
    Fixation Method Screw Mounting and Rivet
    Material Polyamide 6.6, heat and UV-resistant (PA66HSW)
    Mounting Screw Type M4 Screw
    PART DESCRIPTION HCS2025L-PA66HSW-BK
    Pack Cont. 25pcs.
    Package Content packed in bag
    Product Family Cable support
    Product Group Screw fixing mounts
    Type HCS2025L
    Height (H) 11mm
    Length (L) 200mm
    Stud ∅ M4
    Weight/Unit 0.0231kg
    Width (W) 25mm
    for Hole ∅ (FH) 4.9 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    Country of Origin JP
    Customs Number 39269097
    GTIN-13 / EAN 4944387122107
    Packaging 1 - Qty 25
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 0.5775kg
    Packaging 3 - Height (m) 0.28m
    Packaging 3 - Length (m) 0.45m
    Packaging 3 - Qty 500
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0391m³
    Packaging 3 - Weight (kg) 11.89kg
    Packaging 3 - Width (m) 0.31m
    Packaging 4 - Height (m) 1.264m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 10000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.213m³
    Packaging 4 - Weight (kg) 258.8kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
    Self-Adhesive cable tie mounts Self-Adhesive cable tie mounts

    Self-Adhesive cable tie mounts

    HellermannTyton self-adhesive cable tie mounts are perfectly suited for cable fastening on round and angled surfaces. To save time, reduce part diversity and weight.
