19/12/2024

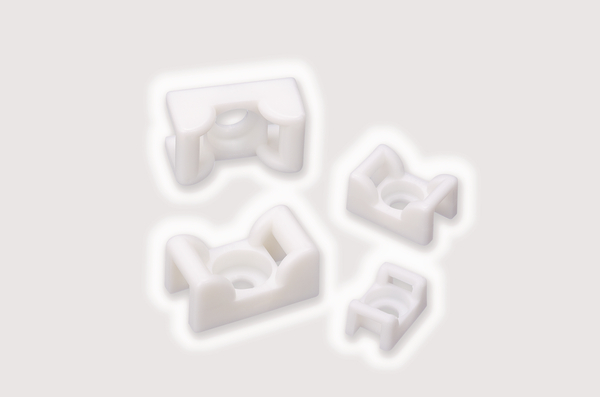

Cable tie mount for screw fixation, Wmax=8.3mm, ∅6.5 mm, M6 Screw, white, 100pcs.
Art.-No. 151-03483 | KR8G5-PA66V0-WH |  Details

    • Curved design for additional cable support
    • Simple to install with a screw or bolt
    • Excellent security, particularly in areas of high vibration
    • Mounts are available in various sizes and materials
    Add to watchlist
    Downloads Datasheet
    Application Designed specifically for holding heavier cable bundles these mounting bases can be used in many industries from agriculture to truck manufacturing. They offer a very secure fixing and can be used with a wide variety of heavy duty cable ties up to 8.3 mm width.
    Colour White (WH)
    Fixation Method Screw Mounting and Rivet
    Material Polyamide 6.6 V0 (PA66V0)
    Mounting Screw Type M6 Screw
    PART DESCRIPTION KR8G5-PA66V0-WH
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family KR with curved design for KR-Ties
    Product Group Screw fixing mounts
    Strap Thickness max. 2.4mm
    Type KR8G5
    Height (H) 12.1mm
    Height (H2) 5.5mm
    Length (L) 24.8mm
    Strap Width max. (G) 8.3mm
    Width (W) 14.3mm
    for Hole ∅ (FH) 6.5 mm
    Flammability UL 94 V0
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin JP
    GTIN-13 / EAN 4944387123548
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
