Cable tie mount for screw fixation, ∅M5, black, 100pcs.
Art.-No. 151-02951 | L4h-M5 Bracket-PA66HSW-BK |  Details

    • Simple to fix one screw
    • Suitable for applications with minimal space
    • L series for running bundles with a distance in parallel
    Add to watchlist
    Downloads Datasheet
    Application Many applications require each cable run to be firmly held in place but separately from adjacent cable runs ( example- control cabinets,machinery and military systems), the L series of mounts helps to achieve this.
    Colour Black (BK)
    Fixation Method Screw Mounting and Rivet
    Material Polyamide 6.6, heat and UV-resistant (PA66HSW)

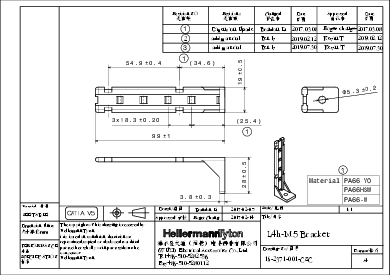

    PART DESCRIPTION L4h-M5 Bracket-PA66HSW-BK
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family L- Series
    Product Group Mounting Bracket for screw fixing
    Type L4h-M5 Bracket
    Height (H) 28.0mm
    Length (L) 99.0mm
    Stud ∅ M5
    Width (W) 19.0mm
    Operating Temperature -40 °C to +105 °C
    Country of Origin CN
    GTIN-13 / EAN 4031026624860
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
    Self-Adhesive cable tie mounts Self-Adhesive cable tie mounts

    Self-Adhesive cable tie mounts

    HellermannTyton self-adhesive cable tie mounts are perfectly suited for cable fastening on round and angled surfaces. To save time, reduce part diversity and weight.
