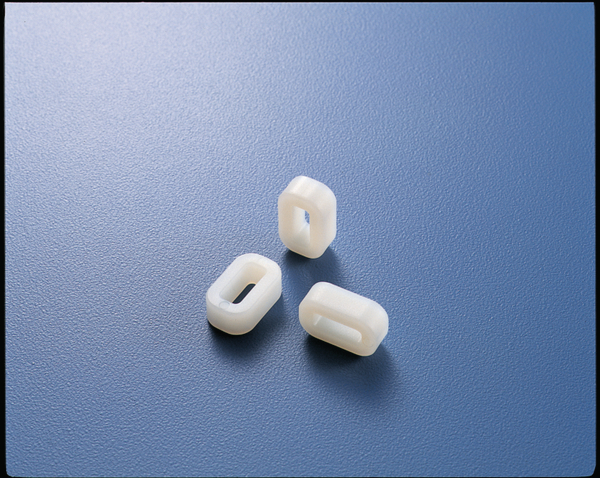

Cable tie mount, Wmax=9.0mm, natural, 100pcs.
Art.-No. 151-00678 | LOK04-PA66-NA |  Details

    • For routing bundles over a distance in parallel
    • Can be used with cable ties up to 9 mm cable tie width
    Add to watchlist
    Downloads Datasheet

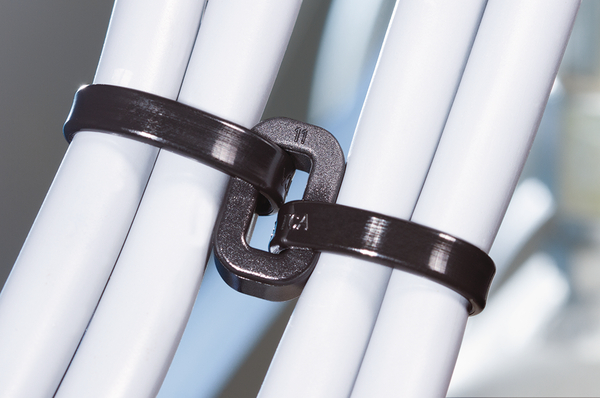

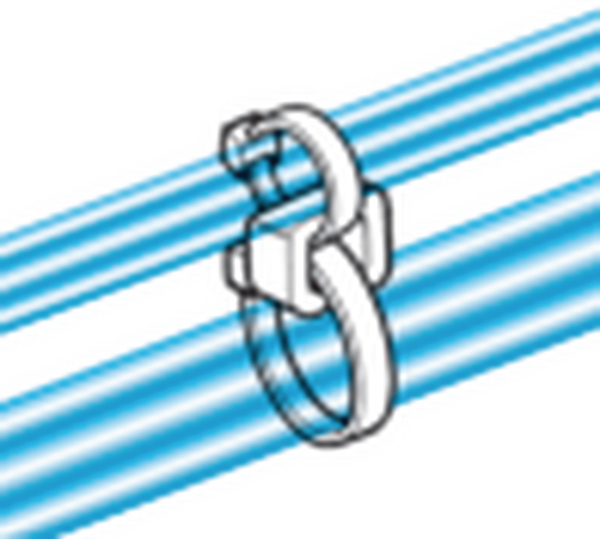

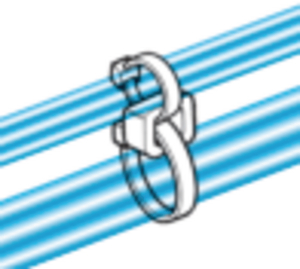

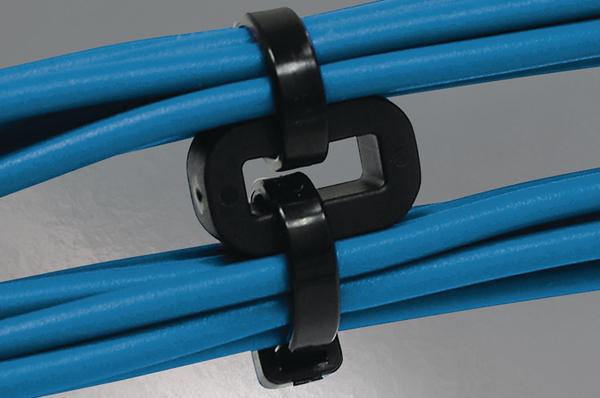

    Application The LOK04 spacer is ideal whenever two or more cables are routed in parallel.
    Colour Natural (NA)
    Fixation Method Wallmount Plug
    Key product features for multiple routing
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION LOK04-PA66-NA
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family LOK04-Series, spacer for parallel routing
    Product Group Fixing base
    Type LOK04

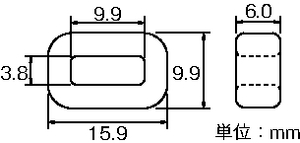

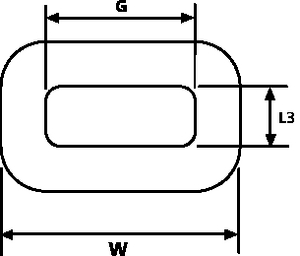

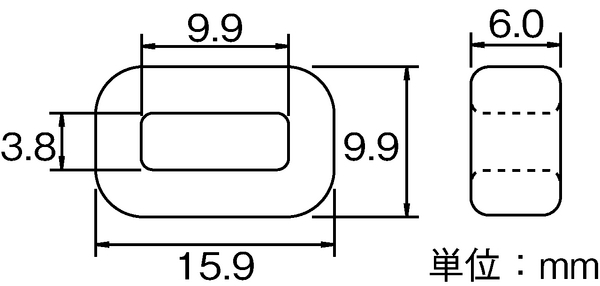

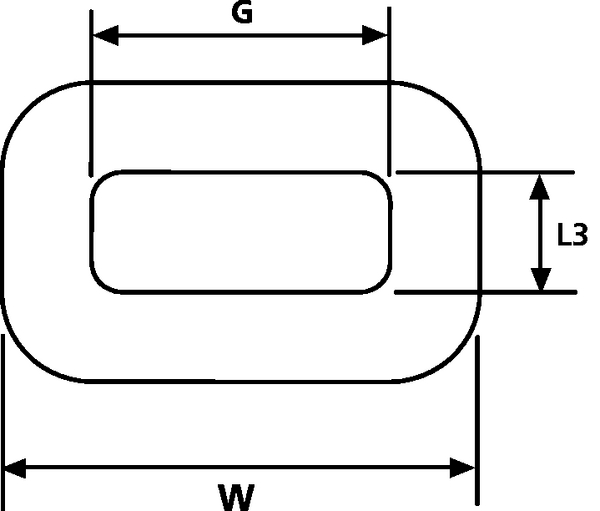

    Length (L3) 4.0mm
    Strap Width max. (G) 9.0mm
    Thickness (T) 6.0mm
    Width (W) 16.0mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    GTIN-13 / EAN 4944387305609
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
