23/12/2024

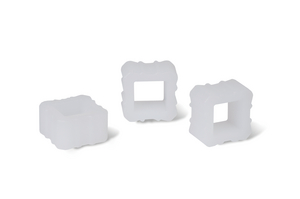

Cable tie mount, Wmax=7.6mm, natural, 100pcs.
Art.-No. 151-04421 | LOKS10J-PA66-NA Details

  • For routing bundles over a distance in parallel
  • Can be used with cable ties up to 9 mm cable tie width
Application The LOK04 spacer is ideal whenever two or more cables are routed in parallel.
Colour Natural (NA)
Fixation Method Wallmount Plug
Key product features for multiple routing
Material Polyamide 6.6 (PA66)
PART DESCRIPTION LOKS10J-PA66-NA
Pack Cont. 100pcs.
Package Content packed in bag
Product Family LOK04
Product Group Fixing base
Type LOKS10J
Length (L) 16mm
Strap Width max. (G) 7.6mm
Thickness (T) 6mm
Width (W) 16mm
Flammability UL 94 V2
Operating Temperature -40 °C to +85 °C
ROHS compliant Yes
Specifications
Country of Origin JP
GTIN-13 / EAN 4944387129090
ETIM 7.0 Key EC000449
ETIM 8.0 Key EC000449
ETIM 9.0 Key EC000449
UNSPSC Key 39121717
