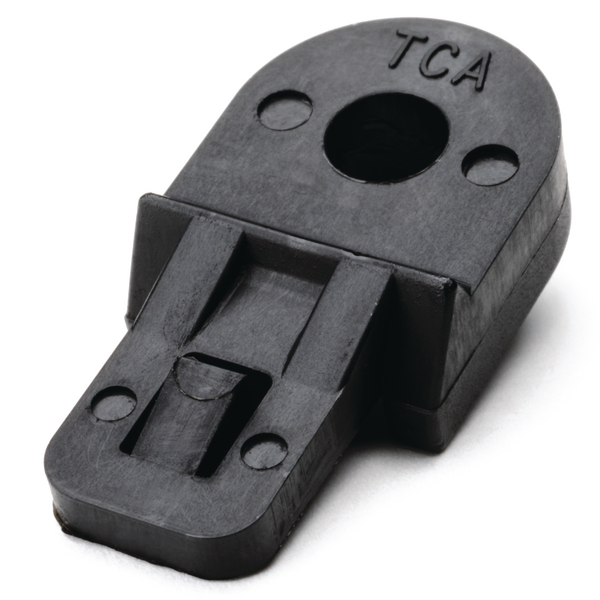

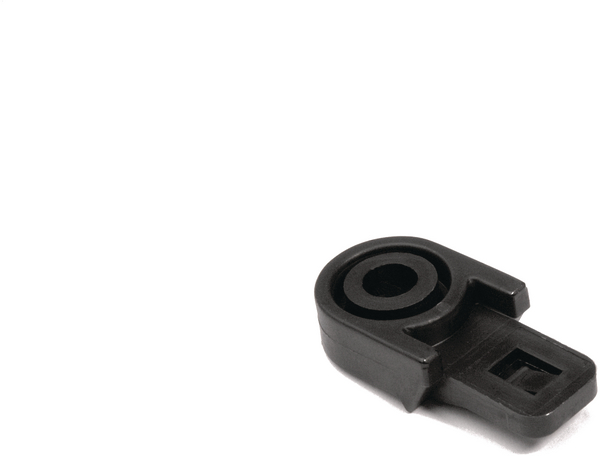

Cable tie mount for screw fixation, Wmax=12.5mm, ∅6.6 mm, #1/4" (M6) Screw, black, 100pcs.
Art.-No. 151-00358 | LTM250-PA66HS-BK Details

Package size
Colour Black (BK)
Fixation Method Screw Mounting and Rivet
For Ties T250
Material Polyamide 6.6, heat stabilised (PA66HS)
Mounting Screw Type #1/4" (M6) Screw
PART DESCRIPTION LTM250-PA66HS-BK
Pack Cont. 100pcs.
Package Content packed in bag
Type LTM250

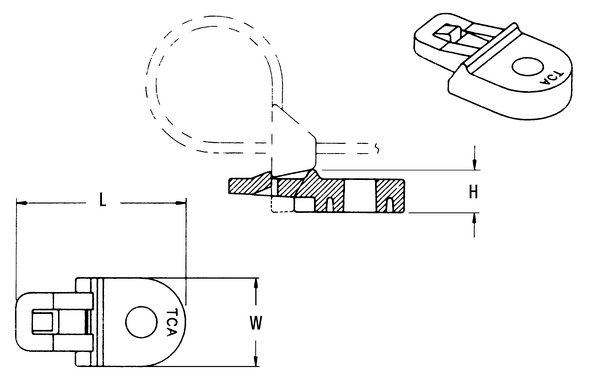

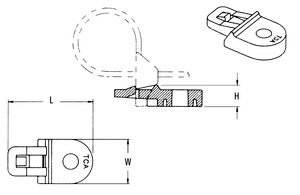

Height (H) 9.6mm
Length (L) 37.1mm
Strap Width max. (G) 0.49"
Strap Width max. (G) 12.5mm
Weight/Unit 0.00323kg
Width (W) 18.5mm
for Hole ∅ (FH) 6.6 mm
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V2
Hazardous Goods No
Operating Temperature -40 °C to +125 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US) No
UV-Stabilised No
Country of Origin US
Customs Number 39269097
GTIN-13 / EAN 4031026726762
Packaging 1 - Height (m) 0.048m
Packaging 1 - Length (m) 0.13m
Packaging 1 - Qty 100
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00156
Packaging 1 - Weight (kg) 0.323001kg
Packaging 1 - Width (m) 0.25m
Packaging 3 - Height (m) 0.212725m
Packaging 3 - Length (m) 0.51435m
Packaging 3 - Qty 3000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0347
Packaging 3 - Weight (kg) 10.31003kg
Packaging 3 - Width (m) 0.3175m
Packaging 4 - Height (m) 1.209m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 60000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.161
Packaging 4 - Weight (kg) 227.2kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000449
ETIM 8.0 Key EC000449
ETIM 9.0 Key EC000449
UNSPSC Key 39121717
