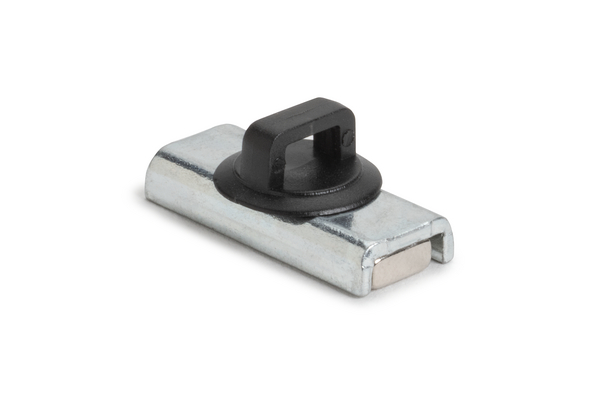

Cable tie mount, Wmax=5.84mm, black, 10pcs.
Art.-No. 151-03649 | MAGCTM20P-NDFEB45M/POM/ST-BK |  Details

    Package size
    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Fixation Method Magnet
    For Ties T18
    Magnetic pull strength (N) 66N
    Magnetic pull strength (kgf) 6.73
    Magnetic pull strength (lb/ft) 15lbf-ft
    Material Neodymium alloy 45M (NDFEB45M), Polyacetal (POM), Steel (ST)
    PART DESCRIPTION MAGCTM20P-NDFEB45M/POM/ST-BK
    Pack Cont. 10pcs.
    Package Content packed in bag
    Type MAGCTM20P
    Diameter (D) 14.0mm

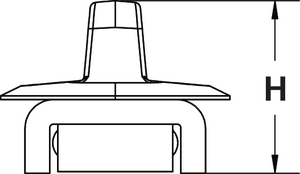

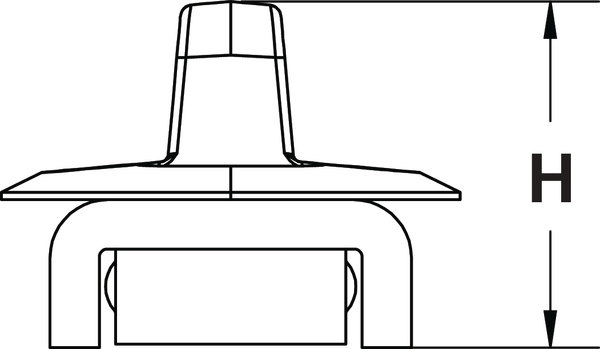

    Height (H) 10.5mm

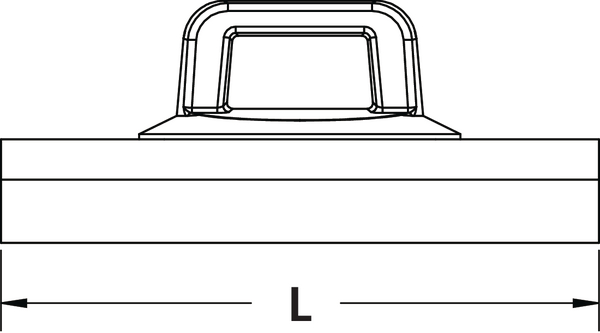

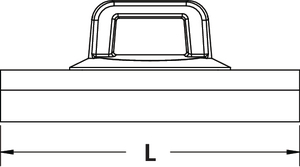

    Length (L) 26.0mm
    Rotation (°) 360°
    Strap Width max. (G) 0.23"
    Strap Width max. (G) 5.84mm
    Width (W) 7.0mm
    ∅ D 0.55"
    CE Certification No
    CSA Certified Yes
    Halogen-free Yes
    Operating Temperature -40 °C to +80 °C
    ROHS compliant Yes
    Reusable (Yes/No) Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised No
    Country of Origin CN
    GTIN-13 / EAN 4031026754550
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
    Self-Adhesive cable tie mounts Self-Adhesive cable tie mounts

    Self-Adhesive cable tie mounts

    HellermannTyton self-adhesive cable tie mounts are perfectly suited for cable fastening on round and angled surfaces. To save time, reduce part diversity and weight.
