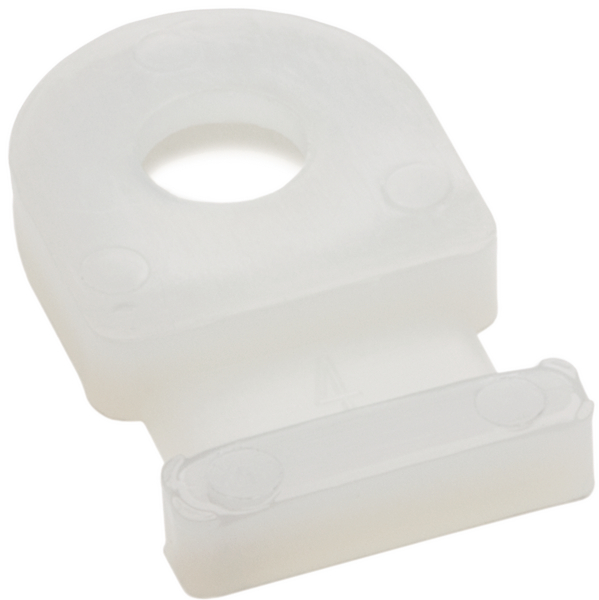

Cable tie mount for screw fixation, Wmax=2.54mm, ∅3.3 mm, #8 (M4) Screw, natural, 100pcs.
Art.-No. 151-00226 | MB1-PA66-NA |  Details

Simple to install with a screw or rivet.

    • Simple to install with a screw or bolt
    • Excellent security, particularly in areas of high vibration
    • Single hole fixing with two-way entry for cable tie
    Package size
    Add to watchlist
    Downloads Datasheet
    Application These cable tie mounts are very small in their overall size. They are designed for simple yet robust installation particulary in areas with high vibrations and/or limited space. They are a common fixing method for telecoms equipment, switchgear and control cabinets.
    Colour Natural (NA)
    Fixation Method Screw Mount
    For Ties T18
    Material Polyamide 6.6 (PA66)
    Mounting Screw Type #8 (M4) Screw
    PART DESCRIPTION MB1-PA66-NA
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family MB with flat design
    Product Group Screw Fixing Mounts
    Type MB1
    Height (H) 3.30mm
    Length (L) 12.7mm
    Strap Width max. (G) 0.1"
    Strap Width max. (G) 2.54mm
    Width (W) 7.92mm
    for Hole ∅ (FH) 3.3 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 V2
    Halogen-free Yes
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026726779
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Width (m) 0.3175m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
