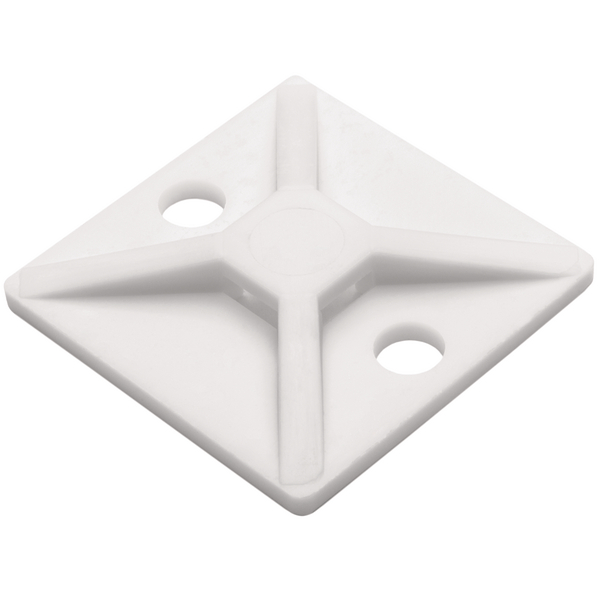

Cable tie mount for screw fixation, Wmax=4.6mm, ∅4.6 mm, #8 Screw, white, 500pcs.
Art.-No. 151-00319 | MB4-PA66-WH |  Details

4-way cable tie entry for more installation options.

    • Screwable or self-adhesive versions
    • Simple to install with a screw or bolt
    • Excellent security, particularly in areas of high vibration
    • Maximum surface area with adhesive to achieve high pull-off force
    • 4-way entry for cable tie for quicker and more flexible installation
    Show more
    Package size
    Add to watchlist
    Downloads Datasheet
    Application Designed specifically for holding heavier cable bundles these mounting bases can be used in many industries from Agriculture to Truck manufacture, they offer a very secure fixing and can be used with a wide variety of heavy duty cable ties up to 9mm wide.
    Colour White (WH)
    Fixation Method Screw Mount
    For Ties T18 - T50
    Material Polyamide 6.6 (PA66)
    Mounting Screw Type #8 Screw
    PART DESCRIPTION MB4-PA66-WH
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family MB-Series square design, screwable
    Product Group Screw fixing cable tie mounts
    Type MB4
    Fixing Hole Centres (F) 0.8"
    Fixing Hole Centres (F) 20.2mm
    Height (H) 4.80mm
    Length (L) 28.5mm
    Strap Width max. (G) 0.18"
    Strap Width max. (G) 4.6mm
    Width (W) 28.5mm
    for Hole ∅ (FH) 4.6 mm
    CE Certification Yes
    CSA Certified No
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Specifications UL
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) Yes
    UL-File Number E64139
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026726663
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Width (m) 0.3175m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
