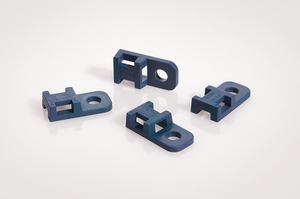

Cable tie mount for screw fixation, Wmax=5.2mm, ∅4.3 mm, M4 Screw, blue, 100pcs.
Art.-No. 151-00997
| MCCTAM1-PA66MD-BU
|
Details
- Distinctive blue colour for easy visual detection
- Suitable for applications with minimal space
- Mounted before cable installation and in line with cable
- CTAM has 4-way entry design for use in line or at 90° angle to cable run
- Magnetic detectable – perfect for use with food and pharmaceutical grade detection equipment
- Total metal dispersion provides consistent detectability, even for small ‘cut-off’ pieces
- Greatly reduced risk of contamination within food products
- Can support quality assurance in the production of food stuffs, for example HACCP
More products in this product group:
| Application | MCCTAM mounts are ideally suited for holding MCT-Series cable ties in position, even in areas of high vibration such as food manufacturing equipment and automated packaging machines. |
| Colour | Blue (BU) |
| Fixation Method | Screw Mount |
| For Ties | MCT18 - MCT50 |
| Material | Polyamide 6.6, metal detectable (PA66MD) |
| Mounting Screw Type | M4 Screw |
| PART DESCRIPTION | MCCTAM1-PA66MD-BU |
| Pack Cont. | 100pcs. |
| Package Content packed in | bag |
| Product Family | MCCTAM-Series, for applications where space is limited |
| Product Group | Cable Tie Mounts for food industry, detectable |
| Short Description | Metal Content Screw Fixing Mount 20.7x10.3 mm PA66MP+ blue |
| Type | MCCTAM1 |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +85 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | No |
|
|
|
| Country of Origin | JP |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4944387104233 |
| Packaging 1 - Height (m) | 0.022m |
| Packaging 1 - Length (m) | 0.17m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00037m³ |
| Packaging 1 - Weight (kg) | 0.054501kg |
| Packaging 1 - Width (m) | 0.1m |
| Packaging 3 - Height (m) | 0.18m |
| Packaging 3 - Length (m) | 0.45m |
| Packaging 3 - Qty | 10000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0251m³ |
| Packaging 3 - Weight (kg) | 5.6601kg |
| Packaging 3 - Width (m) | 0.31m |
| Packaging 4 - Height (m) | 1.224m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 240000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.175m³ |
| Packaging 4 - Weight (kg) | 156.84kg |
| Packaging 4 - Width (m) | 0.8m |
