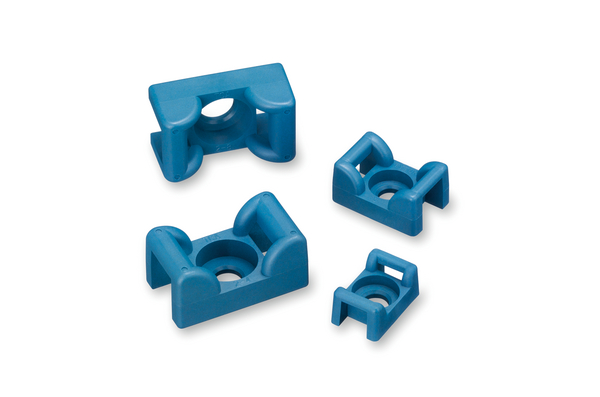

Cable tie mount for screw fixation, Wmax=6.4mm, ∅4.5 mm, M4 Screw, blue, 100pcs.
Art.-No. 151-03840 | MCXRKR6G5-PA66MDXRAYD-BU |  Details

    • Magnetic detectable – perfect for use with food and pharmaceutical grade detection equipment
    • Total metal dispersion provides consistent detectability, even for small ‘cut-off’ pieces
    • Greatly reduced risk of contamination within food products
    • Can support quality assurance in the production of food stuffs, for example HACCP
    Add to watchlist
    Downloads Datasheet
    Application MCXR screw fixing mounts are ideally suited for fixing wiring in position where food factory and pharmaceutical manufacturing site.
    Colour Blue (BU)
    Fixation Method Screw Mounting and Rivet
    Material Polyamide 6.6, metal detectable, X-ray detectable (PA66MDXRAYD)
    Mounting Screw Type M4 Screw
    PART DESCRIPTION MCXRKR6G5-PA66MDXRAYD-BU
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family Cable tie mounts with curved design
    Product Group Screw fixing mounts
    Type MCXRKR6G5
    Height (H) 8.8mm
    Length (L) 17.8mm
    Strap Width max. (G) 6.4mm
    Width (W) 11.8mm
    for Hole ∅ (FH) 4.5 mm
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin JP
    GTIN-13 / EAN 4944387125238
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
