20/12/2024

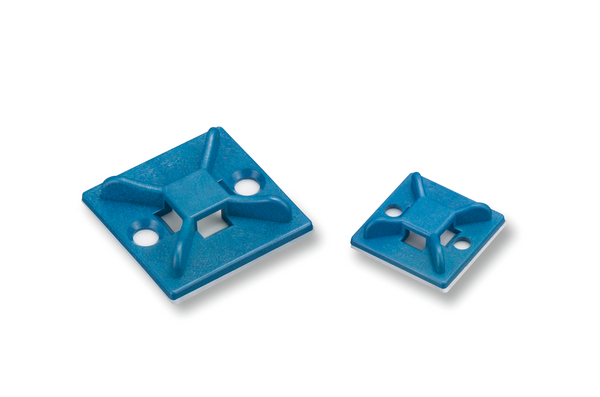

Cable tie mount, Wmax=5.5mm, ∅4.2 mm, Adhesive, blue, 100pcs.
Art.-No. 151-03844 | MCXRMB4A-PA66MDXRAYD-BU |  Details

    • Magnetic detectable – perfect for use with food and pharmaceutical grade detection equipment
    • Total metal dispersion provides consistent detectability, even for small ‘cut-off’ pieces
    • Greatly reduced risk of contamination within food products
    • Can support quality assurance in the production of food stuffs, for example HACCP
    Add to watchlist
    Downloads Datasheet
    Application MCXR adhesive mount is ideally suited for fixing wiring in position where food factory and pharmaceutical manufacturing site.
    Colour Blue (BU)
    Fixation Method Screw Mounting and Adhesive
    Material Polyamide 6.6, metal detectable, X-ray detectable (PA66MDXRAYD)
    Mounting Screw Type Adhesive
    PART DESCRIPTION MCXRMB4A-PA66MDXRAYD-BU
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family MCMB-Series
    Product Group Adhesive mount for food industry, detectable
    Type MCXRMB4A
    Height (H) 6.5mm
    Length (L) 28.0mm
    Load max. 4.9N
    Strap Width max. (G) 5.5mm
    Width (W) 28.0mm
    for Hole ∅ (FH) 4.2 mm
    ROHS compliant Yes
    Specifications
    Country of Origin JP
    GTIN-13 / EAN 4944387125276
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
    Self-Adhesive cable tie mounts Self-Adhesive cable tie mounts

    Self-Adhesive cable tie mounts

    HellermannTyton self-adhesive cable tie mounts are perfectly suited for cable fastening on round and angled surfaces. To save time, reduce part diversity and weight.
