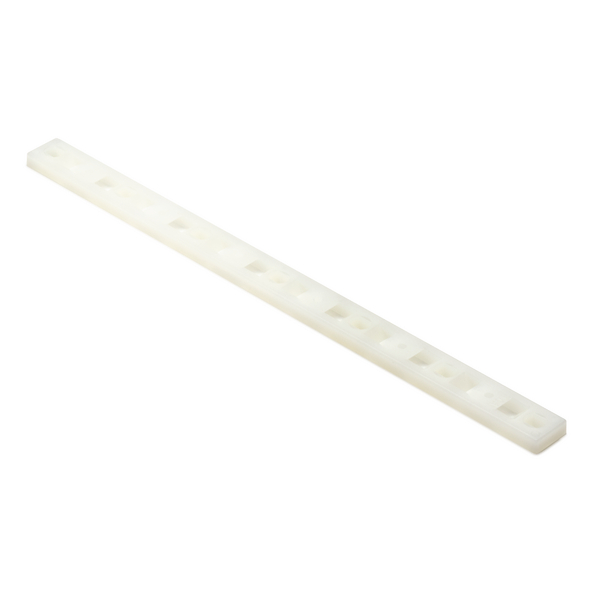

Cable tie mount for screw fixation, Wmax=5.2mm, ∅5.1 mm, #10 (M5) Screw, natural, 100pcs.
Art.-No. 154-00300 | MP2M5-PA66-NA |  Details

MSMP4 mounting plate, screwable.

    • Allow multiple cables to run in parallel
    • Simple to fix with two screws
    • Cables are fixed by using a cable tie through any combination of the available slots
    Package size
    Add to watchlist
    Downloads Datasheet
    Application Many applications require each cable run to be firmly held in place but to be held separately from adjacent cable runs (example - control cabinets, machinery and military systems). The MP series of mounts can achieve this.
    Colour Natural (NA)
    Fixation Method Screw Mount
    For Ties T18 - T50
    Material Polyamide 6.6 (PA66)
    Mounting Screw Type #10 (M5) Screw
    No. of bundles 2
    PART DESCRIPTION MP2M5-PA66-NA
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family MP-Series for parallel bundling
    Product Group Mounting plates for screw fixing
    Type MP2M5
    Fixing Hole Centres (F) 1.25"
    Fixing Hole Centres (F) 31.8mm
    Height (H) 3.2mm
    Hole Size (HS) 7.6mm
    Length (L) 76.2mm
    Strap Width max. (G) 0.2"
    Strap Width max. (G) 5.2mm
    Weight/Unit 0.00257kg
    Width (W) 12.7mm
    for Hole ∅ (FH) 5.1 mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    Country of Origin FR
    Customs Number 39269097
    GTIN-13 / EAN 5022660313080
    Packaging 1 - Height (m) 0.035m
    Packaging 1 - Length (m) 0.254m
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0018m³
    Packaging 1 - Weight (kg) 0.280001kg
    Packaging 1 - Width (m) 0.203m
    Packaging 3 - Height (m) 0.192m
    Packaging 3 - Length (m) 0.586m
    Packaging 3 - Qty 5000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0439m³
    Packaging 3 - Weight (kg) 14.80205kg
    Packaging 3 - Width (m) 0.39m
    Packaging 4 - Height (m) 1.164m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 100000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.117m³
    Packaging 4 - Weight (kg) 317.04kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
