Cable tie mount for screw fixation, Wmax=13.5mm, ∅6.0 mm/6.35 mm (hexagonal), ∅6.35 mm, #1/4" (M6) Screw, black, 500pcs.
Art.-No. 151-00798 | S2CM25-PET-BK |  Details

    • For parallel routing of different bundles to avoid wear and chafing
    • Offers secure alignment to the bundle
    • Can be used in combination with heavy duty cable ties
    • Easy maintenance of bundle by simply changing the cable tie
    • Made from impact modified, heat stabilized material
    • S2HM25 can be used with hex head screws 6.35
    Show more
    Add to watchlist
    Downloads Datasheet

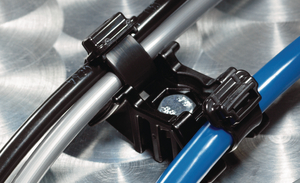

    Application Heavy duty saddle mounts can be installed between two bundles to separate them and prevent chafing and wear. Fastened to a frame rail or mounting bracket, the special profile on the saddle mount provides a tight circumferential loop on large and small bundles. The saddle mount is an ideal assistant in many applications within the railway, truck and agricultural vehicle construction as well as in the ship building industry.
    Colour Black (BK)
    Fixation Method Screw Mounting and Rivet
    Key product features vibration absorbing, for multiple routing
    Material Polyester (PET)
    Mounting Screw Type #1/4" (M6) Screw
    PART DESCRIPTION S2CM25-PET-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family S-Series
    Product Group Two way saddle mount for heavy duty applications, for parallel separation
    Type S2CM25
    Bundle Diameter max (metric) 89.0mm
    Bundle ∅ 89.0mm
    Height (H) 23.0mm
    Height (H2) 15.0mm
    Length (L) 45.0mm
    Strap Width max. (G) 0.53"
    Strap Width max. (G) 13.5mm
    Stud ∅ 0.25"
    Stud ∅ 6.35 mm
    Width (W) 30.0mm
    for Hole ∅ (FH) 6.0 mm, 6.35 mm (hexagonal)
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +65 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    Country of Origin MX
    GTIN-13 / EAN 4031026404417
    Packaging 3 - Height (m) 0.136525m
    Packaging 3 - Length (m) 0.5191125m
    Packaging 3 - Qty 500
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0217m³
    Packaging 3 - Weight (kg) 4.85kg
    Packaging 3 - Width (m) 0.3063875m
    Packaging 4 - Qty 28000
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
