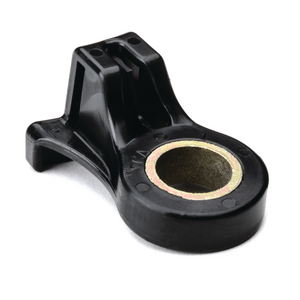

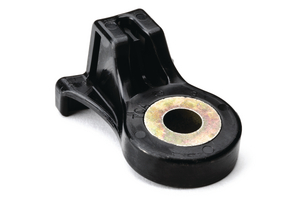

Cable tie mount for screw fixation, Wmax=12.7mm, ∅10.29 mm, ∅10.0 mm, 3/8" (M10) Screw, black, 500pcs.
Art.-No. 151-02102
| SAM400B-R-PA66HIRHSUV-BK
|
Details
- Guides bundles securely above sharp edges
- For threaded bolts or screws
- Can be used in combination with heavy duty cable ties
- For cable ties up to 12.7 mm width
More products in this product group:
| Application | This axial oval mount stands off bundles from frame rails and cross members to prevent them from rubbing and chafing. They can be perfectly used in combination with heavy duty cable ties up to 12.7 mm width – ideal to securely fix cables and wires in the railway and shipbuilding industry as well as in truck and agricultural vehicle construction. |
| Colour | Black (BK) |
| Fixation Method | Screw Mounting and Rivet |
| Key product features | vibration absorbing |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| Mounting Screw Type | 3/8" (M10) Screw |
| PART DESCRIPTION | SAM400B-R-PA66HIRHSUV-BK |
| Pack Cont. | 500pcs. |
| Package Content packed in | carton |
| Product Family | SA-Series |
| Product Group | Harness clip for heavy duty applications, for screws or threaded bolts for edges |
| Short Description | Heavy duty mount 29,9x25 mm black |
| Type | SAM400B-R |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Max. Torque (kgf-cm) | 1576.0kgf-cm |
| Max. Torque (lbf-In) | 114.0lbf-ft |
| Operating Temperature | -40 °C to +105 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | Yes |
|
|
|
| Country of Origin | US |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026629513 |
| Packaging 3 - Height (m) | 0.1508125m |
| Packaging 3 - Length (m) | 0.4365625m |
| Packaging 3 - Qty | 500 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0176m³ |
| Packaging 3 - Weight (kg) | 8.85kg |
| Packaging 3 - Width (m) | 0.2667m |
| Packaging 4 - Height (m) | 1.201m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 21000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.153m³ |
| Packaging 4 - Weight (kg) | 392.7kg |
| Packaging 4 - Width (m) | 0.8m |
