23/12/2024

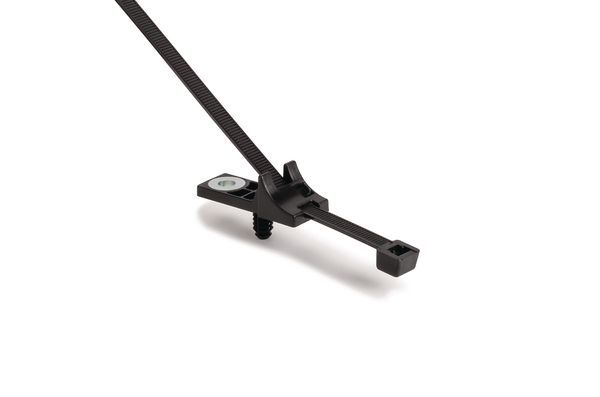

Fixing tie for screw fixation, inside serrated, ∅5.0-105.0mm, black, 1000pcs.
Art.-No. 156-02987 | T120RCPCM6FT6.5SET-PA66HIRHSUV-BK |  Details

Fir tree mounts are designed to provide low insertion force and high extraction force.

    Add to watchlist
    Downloads Datasheet
    Cable Tie Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Colour Black (BK)
    Fixation Method Screw Mount
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Mounting Screw Type M6 Screw
    PART DESCRIPTION T120RCPCM6FT6.5SET-PA66HIRHSUV-BK
    Pack Cont. 1000pcs.
    Package Content packed in carton
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T120RCPCM6FT6.5SET
    Variant Inside Serrated
    Bundle Diameter max (metric) 105.0mm
    Bundle ∅ 5.0-105.0mm
    Bundle ∅ min. 5.0mm
    Height (H) 28.22mm
    Height (H2) 12.72mm
    Length (L) 385.0mm
    Min.Tensile Strength 535N
    Stud ∅ 0.24"
    Stud ∅ 6.0 mm
    Thickness (T) 1.8mm
    Width (W) 7.6mm
    Width (W2) 20.0mm
    for Hole ∅ (FH) 6.2 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026642642
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
