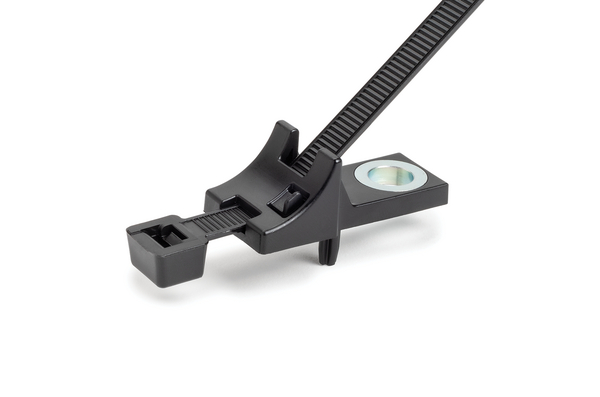

Fixing tie for screw fixation, inside serrated, ∅5.0-105.0mm, black, 1000pcs.
Art.-No. 156-02482 | T120RCPCM8-TSSET-PA66HIRHSUV/PA66HIRHS-BK |  Details

    Add to watchlist
    Downloads Datasheet
    Cable Tie Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Colour Black (BK)
    Fixation Method Screw Mount
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Mounting Screw Type M8 Screw
    PART DESCRIPTION T120RCPCM8-TSSET-PA66HIRHSUV/PA66HIRHS-BK
    Pack Cont. 1000pcs.
    Package Content packed in carton
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T120RCPCM8-TSSET
    Variant Inside Serrated
    Bundle Diameter max (metric) 105.0mm
    Bundle ∅ 5.0-105.0mm
    Bundle ∅ min. 5.0mm
    Height (H) 23.5mm
    Length (L) 385.0mm
    Min.Tensile Strength 535N
    Stud ∅ 0.31"
    Stud ∅ 8.0 mm
    Thickness (T) 1.8mm
    Width (W) 7.6mm
    Width (W2) 20.0mm
    for Hole ∅ (FH) 8.4 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin CN
    GTIN-13 / EAN 4031026714608
    Packaging 3 - Height (m) 0.212725m
    Packaging 3 - Length (m) 0.51435m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0347m³
    Packaging 3 - Width (m) 0.3175m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
