13/11/2024

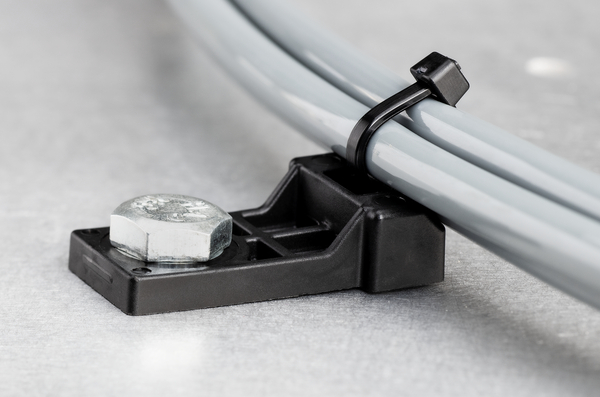

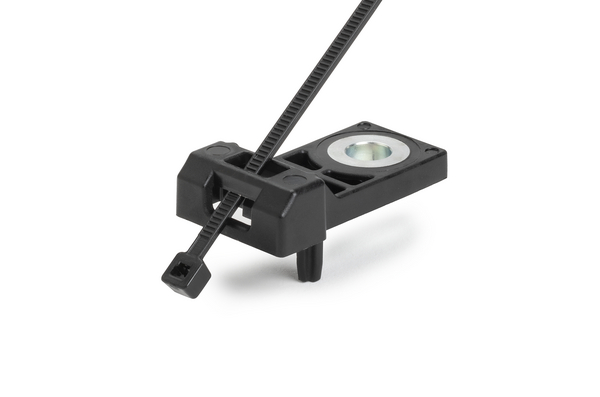

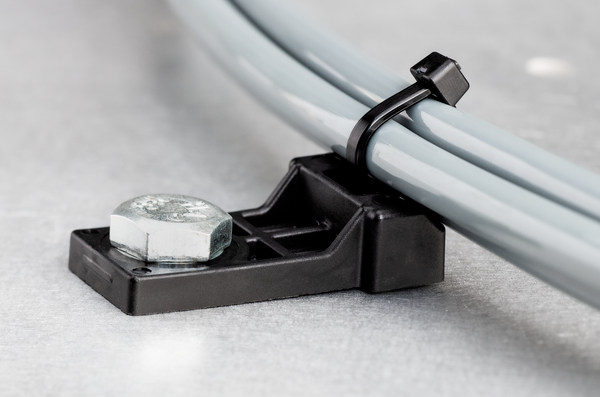

Fixing tie for screw fixation, inside serrated, ∅1.5-35.0mm, black, 2000pcs.
Art.-No. 156-04084 | T30RLPCPCM6TSSET-PA6/PA66HIRHSUV-BK |  Details

    Add to watchlist
    Downloads Datasheet
    Cable Tie Polyamide 6.6, high impact modified, heat and UV-resistant (PA66HIRHSW)
    Colour Black (BK)
    Fixation Method Screw Mount
    Identification Plate Position none
    Material Polyamide 6 (PA6), Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Mounting Screw Type #1/4" (M6) Screw
    PART DESCRIPTION T30RLPCPCM6TSSET-PA6/PA66HIRHSUV-BK
    Pack Cont. 2000pcs.
    Package Content packed in carton
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T30RLPCPCM6TSSET
    Variant Inside Serrated
    Bundle Diameter max (metric) 35.0mm
    Bundle ∅ 1.5-35.0mm
    Bundle ∅ min. 1.5mm
    Height (H) 8.5mm
    Length (L) 152.4mm
    Min.Tensile Strength 135N
    Stud ∅ 0.24"
    Stud ∅ 6.0 mm
    Thickness (T) 8.5mm
    Width (W) 20.0mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026666822
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121731
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...

    Cable holder >
