Fixing tie for screw fixation, inside serrated, ∅2.0-50.0mm, black, 1000pcs.
Art.-No. 156-03972 | T50RCPCM67DTSSET-PA66HIRHS(REC100)-BK |  Details

    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Fixation Method Screw Mount
    Identification Plate Position none
    Material Polyamide 6.6 recycled, high impact modified, heat stabilised (PA66HIRHS(REC100))
    Mounting Screw Type #1/4" (M6) Screw
    PART DESCRIPTION T50RCPCM67DTSSET-PA66HIRHS(REC100)-BK
    Pack Cont. 1000pcs.
    Package Content packed in carton
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50RCPCM67DTSSET
    Variant Inside Serrated
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 2.0-50.0mm
    Bundle ∅ min. 2.0mm
    Height (H) 15.5mm
    Length (L) 202.0mm
    Min.Tensile Strength 225N
    Stud ∅ 0.24"
    Stud ∅ 6.0 mm
    Width (W) 20.0mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    Country of Origin MX
    GTIN-13 / EAN 4031026703008
    Packaging 3 - Height (m) 0.137m
    Packaging 3 - Length (m) 0.519m
    Packaging 3 - Qty 1000
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0218m³
    Packaging 3 - Weight (kg) 4.2kg
    Packaging 3 - Width (m) 0.306m
    Packaging 4 - Qty 56000
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121731

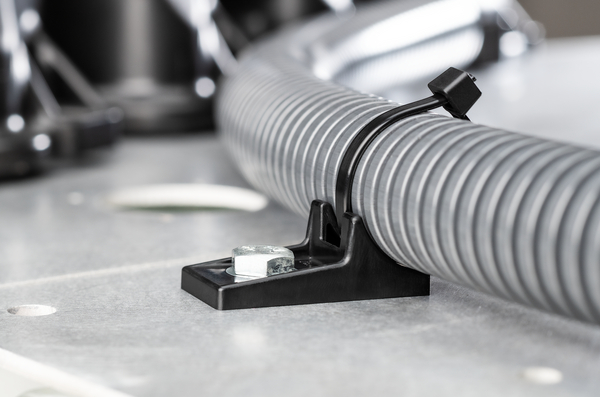

    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
