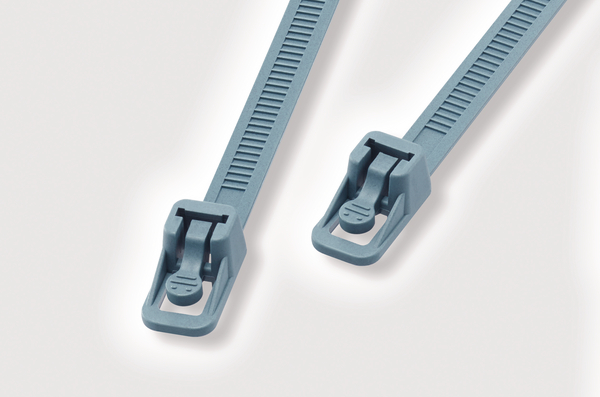

Cable tie inside serrated, 203x7.4mm, ∅5-45mm, blue, 100pcs.
Art.-No. 115-00171 | MCTSMGORF200-PA66MDantibacterial-BU |  Details

    • Releasable Cable tie, detectable with metal detector and with excellent antibacterial, anti-mold and virus inactivation effect
    • The detection level by the metal detector is equivalent to that of the standard MCTS type.
    • It conforms to the tests based on the Food Sanitation Law and also carries out various safety tests.
    Add to watchlist
    Downloads Datasheet
    Application The Metal Content Tie is a cable tie specifically designed for use in the food and pharmaceutical processing industries. A unique manufacturing process, involving the inclusion of a metallic pigment, enables even small 'cut-off' sections of the tie to be detected by standard metal-detecting equipment. Ideally suited for the installaton of cabling in and around the manufacturing process.
    Application Tool ProCut 9 no battery, EVOcut, MK9P, MK9P w/ Upper air, MK10-SB, MK21, EVO9SP, EVO9HT, EVO9i, EVO9iSP, EVO9iHT
    Colour Light Blue (LTBU)
    Identification Plate Position none
    Key product features detectable
    Material Polyamide 6.6, metal detectable, antimold, antibacterial (PA66MDantibacterial)
    PART DESCRIPTION MCTSMGORF200-PA66MDantibacterial-BU
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family MCT-Series
    Product Group Releasable Metal Content Tie with Anti-mold and antibacterial effect
    Releasable Closure (Yes/No) Yes
    Tie Closure plastic pawl
    Type MCTSMGORF200
    Variant Inside Serrated
    Bundle Diameter max (metric) 45mm
    Bundle ∅ 5-45mm
    Bundle ∅ min. 5mm
    Length (L) 203mm
    Min.Tensile Strength 150N
    Thickness (T) 1.3mm
    Width (W) 7.4mm
    Operating Temperature -40 °C to +85 °C
    Country of Origin JP
    GTIN-13 / EAN 4944387119251
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
