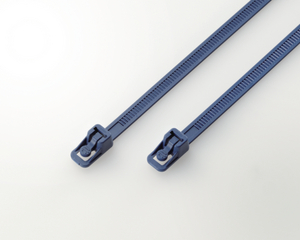

Cable tie inside serrated, 303x7.4mm, ∅5-78mm, blue, 100pcs.
Art.-No. 115-00126 | MCTSORF300-PA66MD-BU |  Details

    • Total metal dispersion throughout the tie
    • Can be re-opened and re-used
    • Available in different sizes
    • Supports quality processes around the production of food stuffs
    • Blue colour most common for easy visual detection
    • Greatly reduces risk of contamination

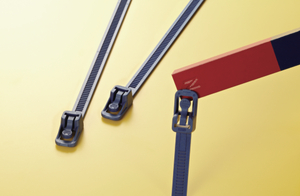

    • Magnetic detectable (detection level depending on specific application)
    • MCTS ties have very good corrosion resistance
    Show more
    Add to watchlist
    Downloads Datasheet
    Application Our MCTS cable ties have been specifically developed to be used in the food & beverage as well as in the pharmaceutical industry. A unique manufacturing process in combination with a unique material formulation is offering outstanding performance in line with high corrosion resistance. This makes the MCTS an ideal product even for very humid environments. In addition the MCTSORF ties do have a releasable function thus they can be re-opened and re-used.
    Colour Blue (BU)
    Fixation Method Releasable Cable Tie
    Identification Plate Position none
    Key product features detectable
    Material Polyamide 6.6, metal detectable (PA66MD)
    PART DESCRIPTION MCTSORF300-PA66MD-BU
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family MCTS-Series releasable
    Product Group Cable ties for food industry, detectable, corrosion resistant, re-usable
    Releasable Closure (Yes/No) Yes
    Short Description Releasable cable tie 303x7.4 mm, detectable, corrosion resistant, blue
    Tie Closure plastic pawl
    Type MCTSORF300
    Variant Inside Serrated
    Bundle Diameter max (metric) 78mm
    Bundle ∅ 5-78mm
    Bundle ∅ min. 5mm
    Length (L) 303mm
    Min.Tensile Strength 150N
    Thickness (T) 1.3
    Width (W) 7.4mm
    Halogen-free Yes
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin JP
    Customs Number 39269097
    GTIN-13 / EAN 4944387108590
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
